APPARATUS FOR THE HOMOGENIZATION AND SEPARATION OF SAMPLES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 25, 2015
app pub date -
Jul 2, 2013
filing date -
Jul 2, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

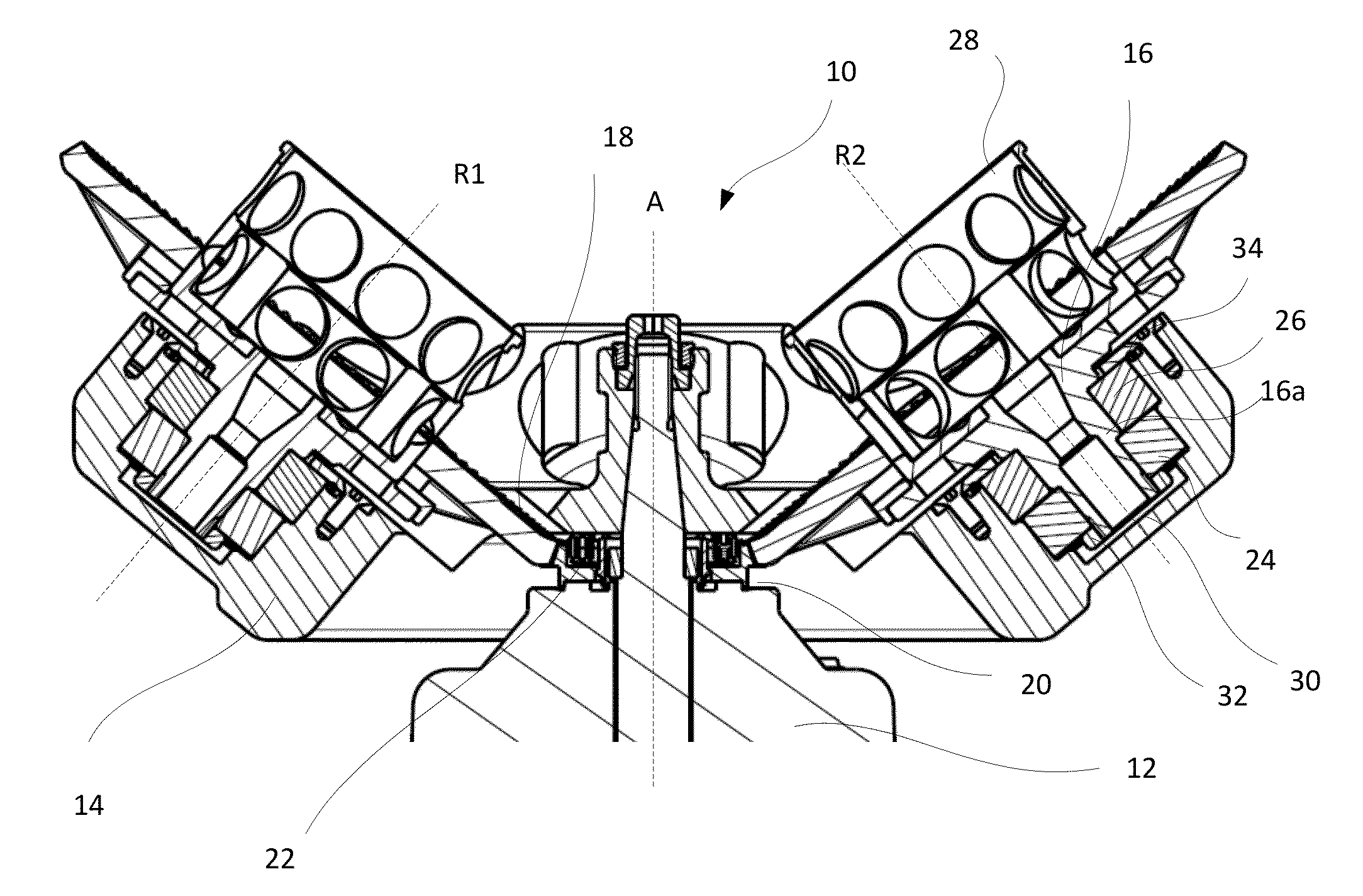

The invention relates to an apparatus for the homogenization and separation of media (10), comprising a centrifuge (40, 70) having a centrifuge rotor (14, 44, 74) which can be rotated about a motor axis (A) of a centrifuge motor (12, 42, 72) and which includes a rotor body, connected to which is at least one rotation unit (16, 48, 80) in such a way that it is additionally adapted to be rotatable about an axis of rotation of a rotation unit, which axis is different from the motor axis (A), and that it can be driven via a rotation unit drive, with means being provided which can be used to set at least two different rotation speeds of the rotation unit (16, 48, 80), and furthermore the rotation unit (16, 48, 80) has toothing (8) on its periphery by which the rotation unit (16, 48, 80) can be driven. The invention is characterized in that the rotation unit drive comprises toothing which is associated with the centrifuge motor.
First Claim
Other Claims data not available
