THERMOCHROMIC SOLDER MASK FOR ELECTRONIC DEVICES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 18, 2015
app pub date -
Dec 12, 2013
filing date -
Dec 12, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

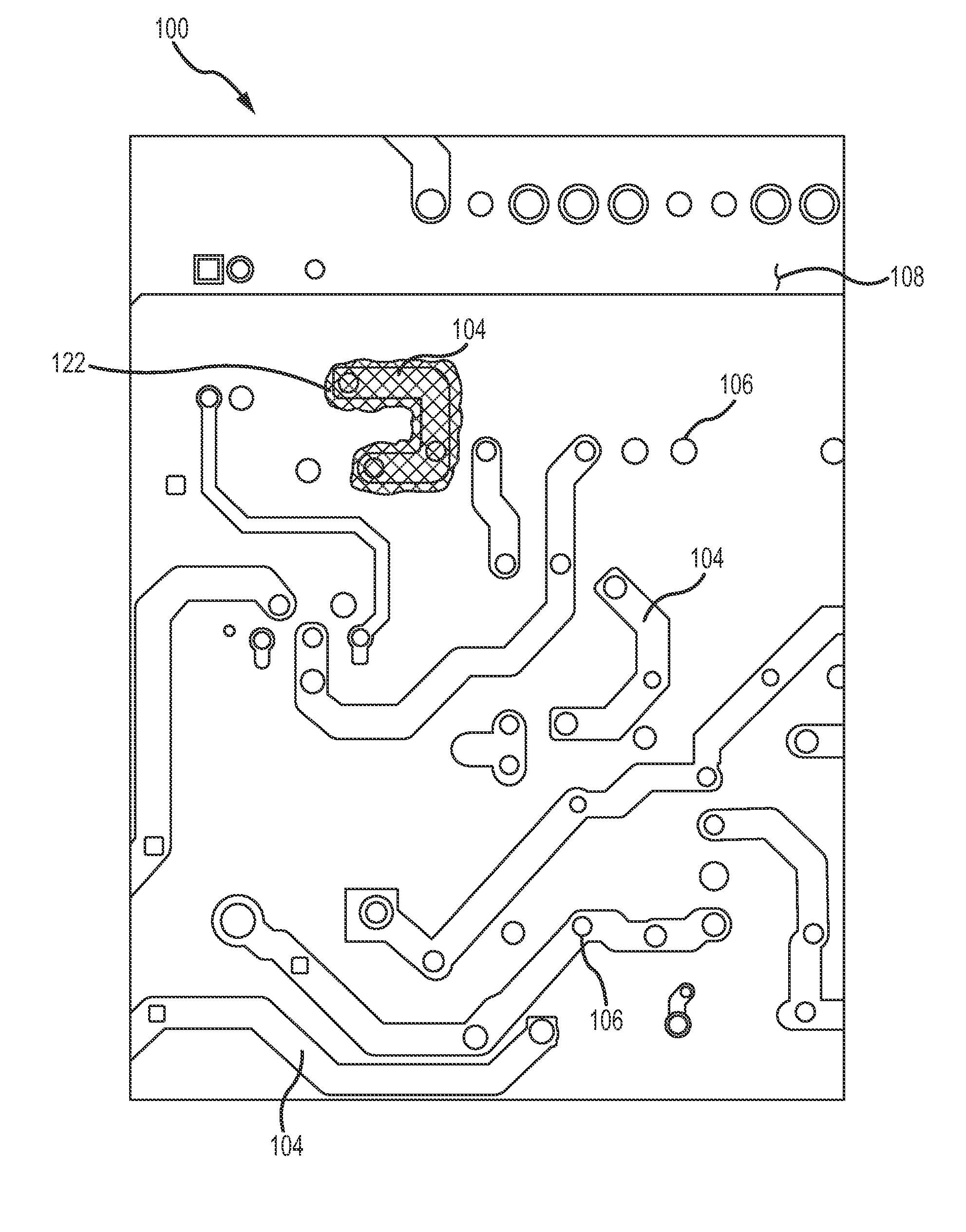

An electronic device is disclosed herein. In accordance with certain implementations, the electronic device includes a printed circuit board having electrically conductive traces formed thereon. The electronic device also includes a thermochromic solder mask layer overlying the electrically conductive traces. The thermochromic solder mask layer changes color in response to temperature changes associated with operation of the electronic device. The thermochromic characteristics of the solder mask layer are useful for purposes of indicating overheating of the electronic device, the conductive traces, or a region of the printed circuit board.
First Claim
Other Claims data not available
