SCROLL COMPRESSOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 18, 2015
app pub date -
Jun 10, 2013
filing date -
Jul 6, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

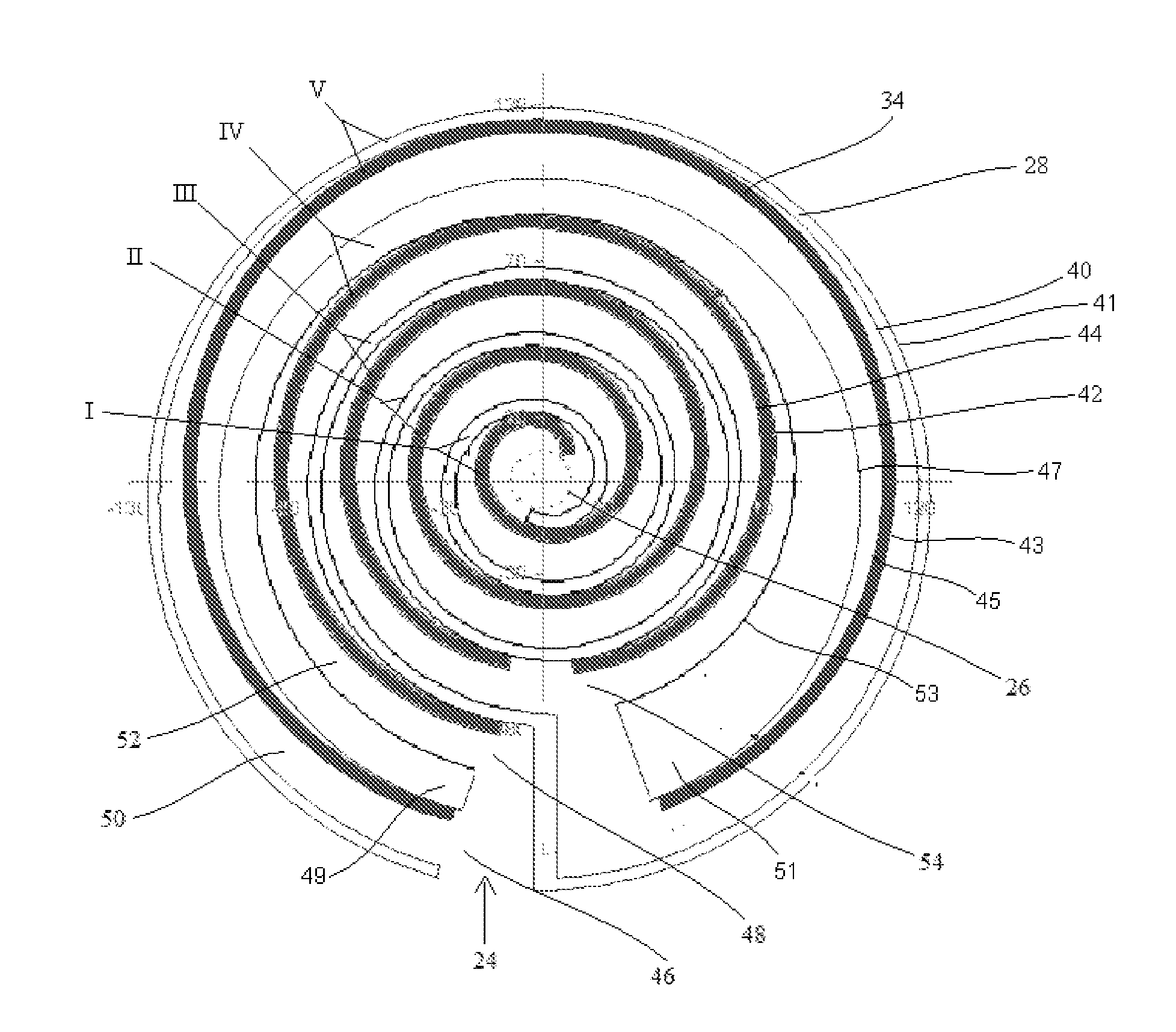

The present invention relates to a scroll compressor comprising a scroll pumping arrangement comprising two scrolls each having a scroll wall with inner and outer scroll wall surfaces which co-operate with respective outer and inner scroll wall surfaces of the other scroll wall providing two pairs of co-operating surfaces which, on relative orbiting motion of the scrolls, pump fluid from an inlet to an outlet of the arrangement, the scroll walls having a respective plurality of wraps I, II, III, IV, V between the inlet and the outlet and wherein the co-operating scroll wall surfaces of one of said pairs of at least one wrap are generally circular.
First Claim
Other Claims data not available
