THREE DIMENSIONAL PRINTING APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 18, 2015
app pub date -
Mar 26, 2014
filing date -
Dec 13, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

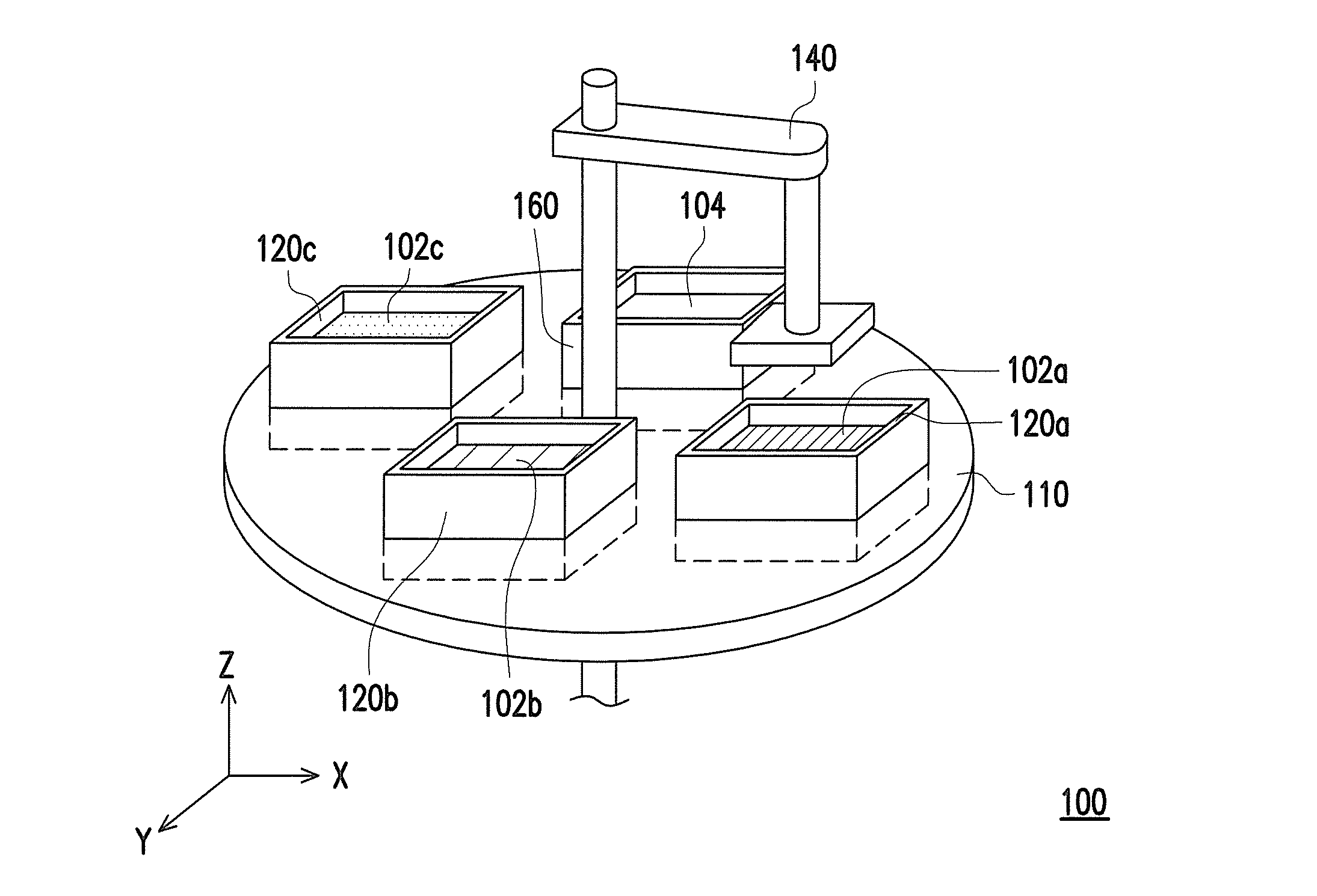

A three-dimensional printing apparatus including a supporting platform, first tanks, an elevating platform disposed above the supporting platform, a light source module disposed corresponding to the elevating platform, and a control unit is provided. The first tanks are disposed on the supporting platform and filled with liquid forming materials respectively. After choosing one of the liquid forming materials, the control unit controls the supporting platform to move, in relative to the light source module and the elevating platform, till the chosen liquid forming material is moved to correspond to the light source module, so as to form a three-dimensional object through the chosen liquid forming material. Another three-dimensional printing apparatus is provided, in which a control unit controls the light source and the elevating platform to move to correspond to the chosen liquid forming material, so as to form a three-dimensional object through the chosen liquid forming material.
First Claim
Other Claims data not available
