LABELLING UNIT FOR APPLYING A LABEL ONTO AN ARTICLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 11, 2015
app pub date -
Dec 11, 2014
filing date -
Dec 11, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

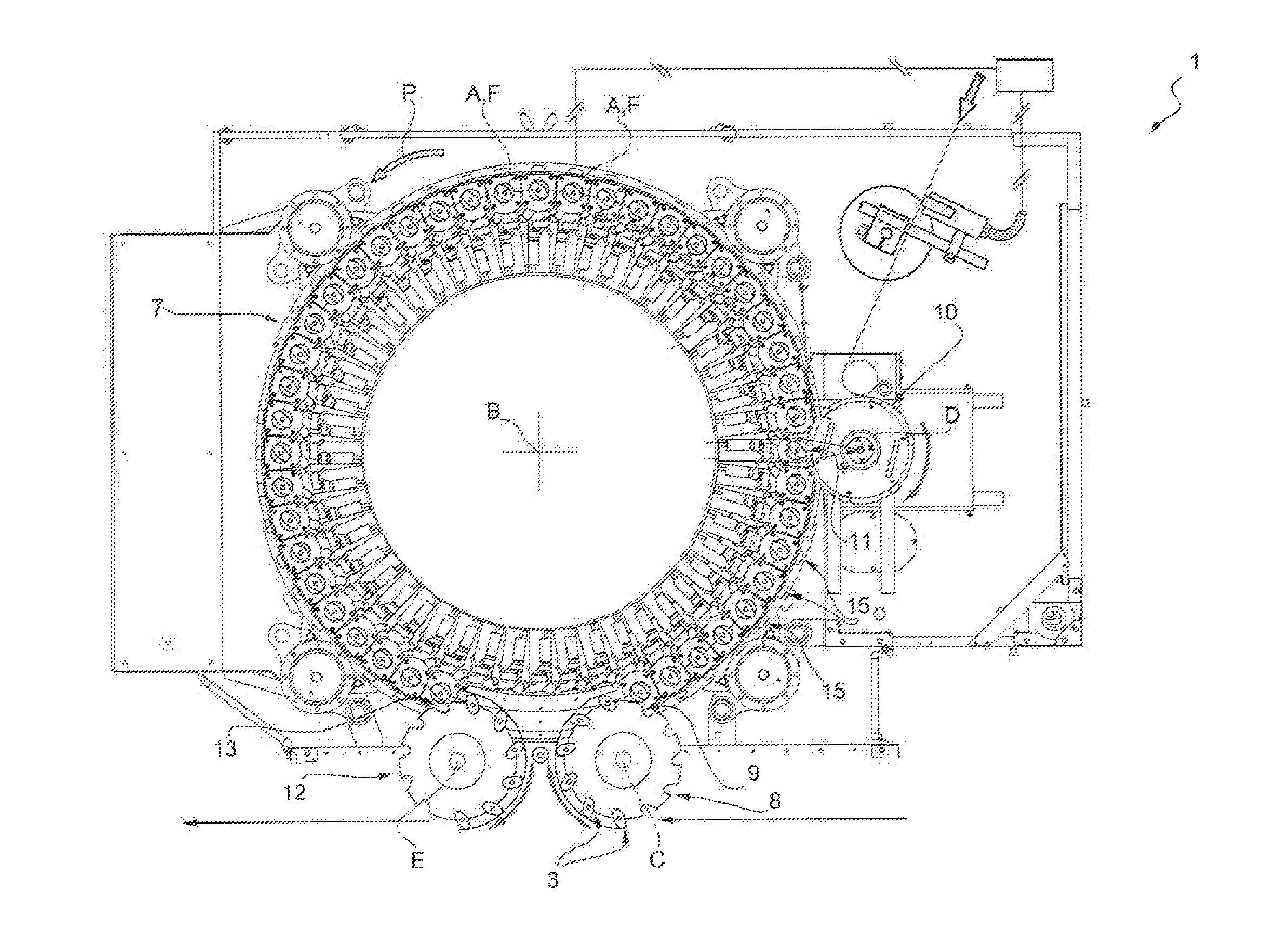

A labelling unit comprises support means and a receiving member adapted to carry an article to be labelled and to receive a label, and supported by the support means in a translational and rotational manner with respect to an axis. The receiving member is movable along an axis between a raised position, in which it axially protrudes from the support means and is adapted to receive the article on its top portion and the label wrapped around its lateral wall, and a retracted position, in which it is housed within the support means so as to permit insertion of the article into the label welded in an endless configuration. The lateral wall of the receiving member comprises first suction means cooperating in use with a leading edge of the label, and second suction means cooperating in use with a remaining part of the label.
First Claim
Other Claims data not available
