TORQUE STRUT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 11, 2015
app pub date -
Dec 11, 2013
filing date -
Dec 11, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

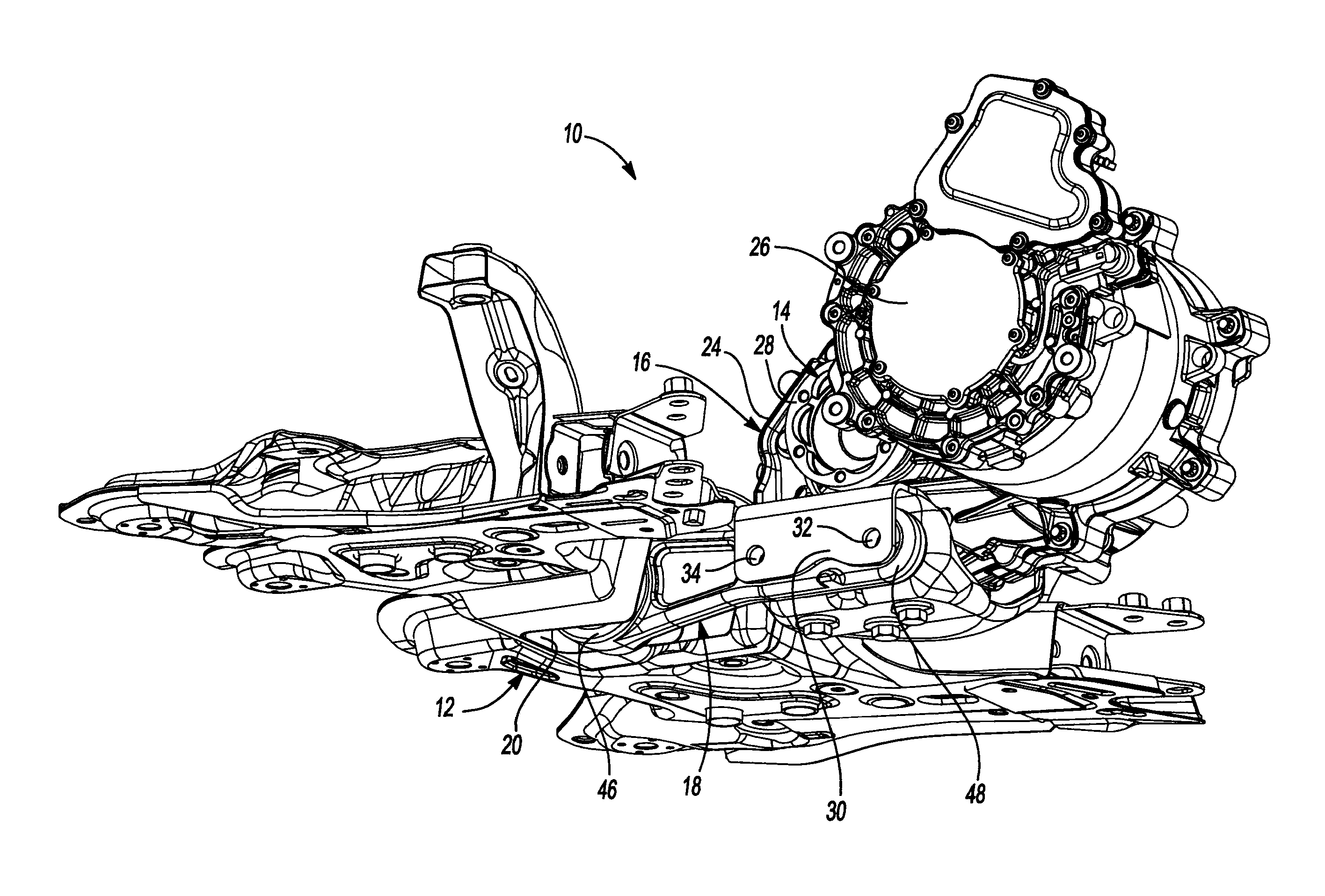

A system for a vehicle may include a vehicle chassis, an electric motor, and a torque strut. The electric motor may include a rotor and may be operable in a first mode to rotate the rotor in a first direction to propel the vehicle about a rotational axis and in a second mode in which the rotor is rotated in a second direction about the rotational axis. The torque strut may include first, second and third mounting structures. The first mounting structure may be coupled to the vehicle chassis. The second and third mounting structures may be spaced apart from each other and may be coupled to the electric motor to prevent relative rotation between the torque strut and the electric motor.
First Claim
Other Claims data not available
