CONNECTOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 28, 2015
app pub date -
May 14, 2013
filing date -
May 18, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

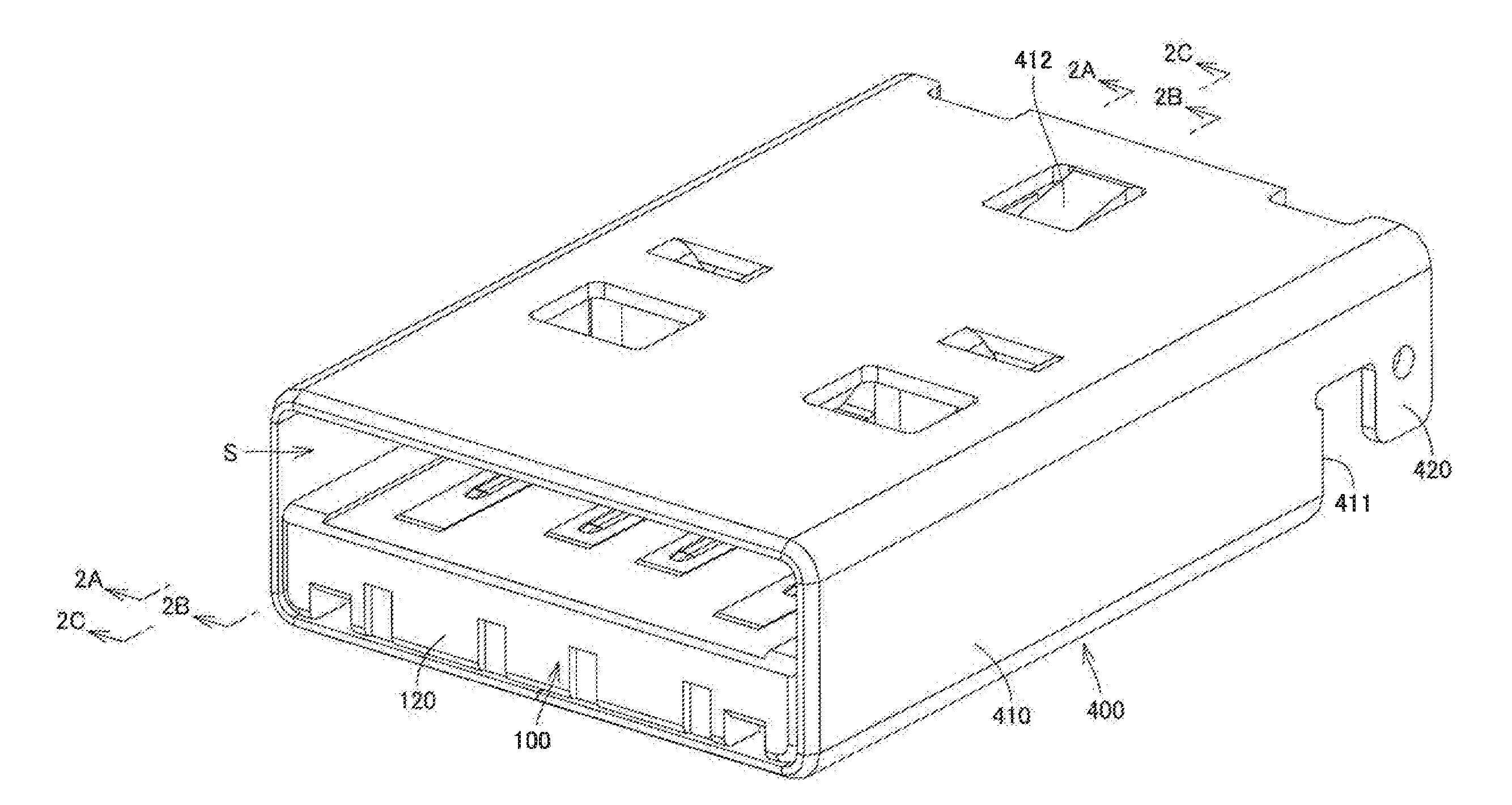

The invention provides a connector capable of reducing crosstalk between contacts. The connector includes first and second contacts 200a and 200b aligned at a first height along a first direction X in a body 100, a third contact 200c provided at a second height between the first and second contacts 200a and 200b in the body 100, and fourth contacts 300a disposed at a third height other than the first and second heights, on the sides in the first direction X of the third contact 200c in the body 100. The third contact 200c includes a third body 210c (crosstalk reduction portion), and the first and second contacts 200a and 200b respectively include first and second bodies 210a and 210b (first and second corresponding portions). The third body 210c is located closer to the fourth contacts 300a than the first and second bodies 210a and 210b are.
First Claim
Other Claims data not available
