DEVICE FOR WIRELESS CHARGING OF A TERMINAL, INTENDED TO BE INSTALLED IN AN AUTOMOBILE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 28, 2015
app pub date -
Nov 21, 2014
filing date -
Apr 15, 2013
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

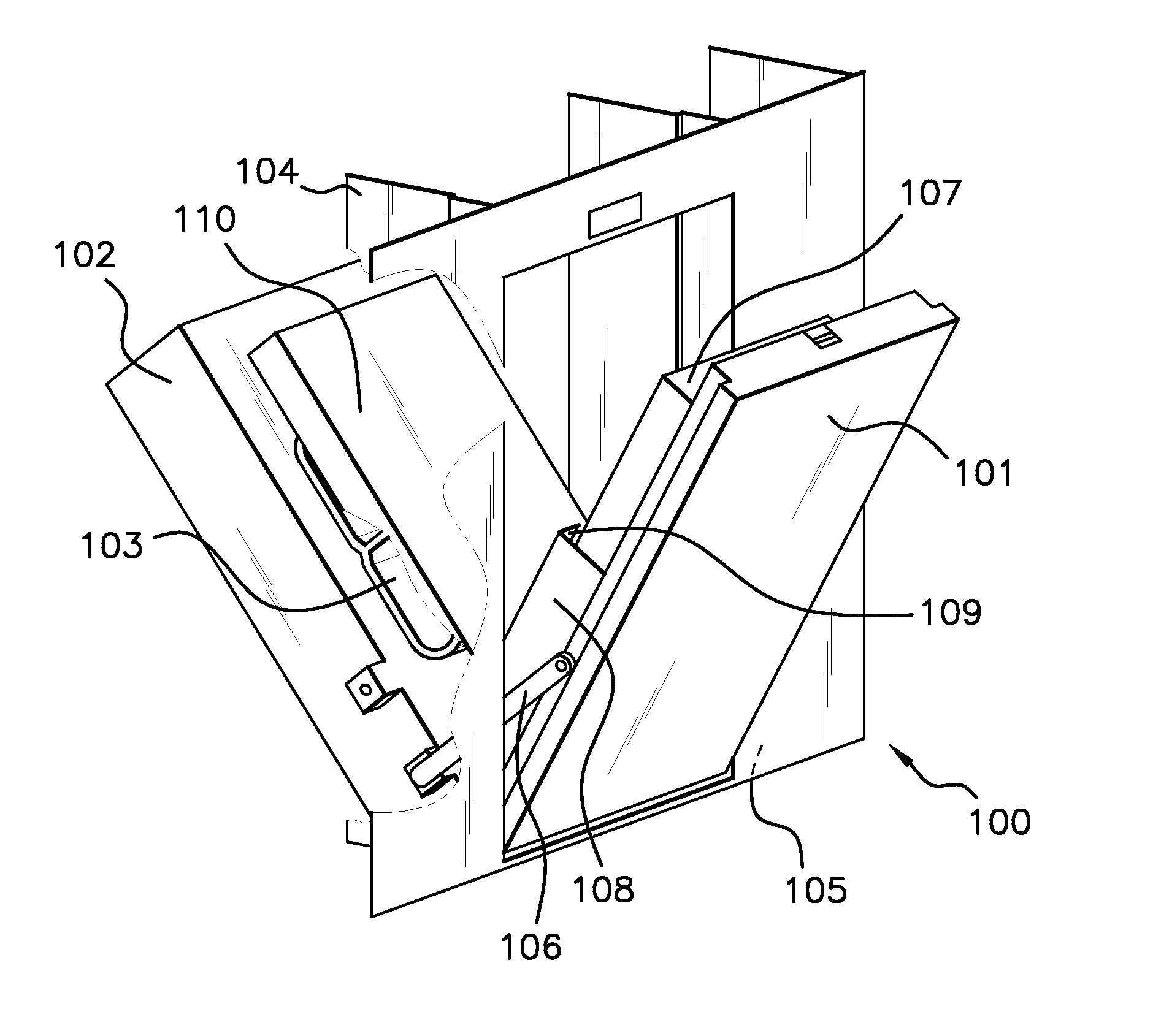

A device (100) for wireless electrical charging, intended to be installed in an automobile has a coil referred to as the “emitter coil” and a circuit for supplying the emitter coil, a first part (101) and a second part (102), at least one of which can move relative to the other between: a closed position of the device, in which the first and second parts are arranged so as to delimit a cavity for receiving a terminal (107); and an open position of the device adapted to allow insertion of the terminal. The second part has on the side of the first part a resilient element (103) including a rigid portion (110) which includes the emitter coil, the rigid portion being adapted to bear, when the device is in the closed position, against the terminal in the reception cavity, and to hold the terminal immobile against the first part.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
CONTINENTAL AUTOMOTIVE GMBH | VAHRENWALDER STRASSE 9 HANNOVER 30165 | |
CONTINENTAL AUTOMOTIVE FRANCE | 1 AVENUE PAUL OURLIAC TOULOUSE 31100 |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
JUREK, Gilles | Plaisance Du Touch, FR | 9 | 20 |
# of filed Patents : 9 Total Citations : 20 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- H02J Class
- 0 % this patent is cited more than
- 10 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 28, 2026 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
