FORMING OF A HEAVILY-DOPED SILICON LAYER ON A MORE LIGHTLY-DOPED SILICON SUBSTRATE

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20150137133A1
SERIAL NO

14537992

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

A method of forming a heavily-doped silicon layer on a more lightly-doped silicon substrate including the steps of depositing a heavily-doped amorphous silicon layer; depositing a silicon nitride layer; and heating the amorphous silicon layer to a temperature higher than or equal to the melting temperature of silicon.

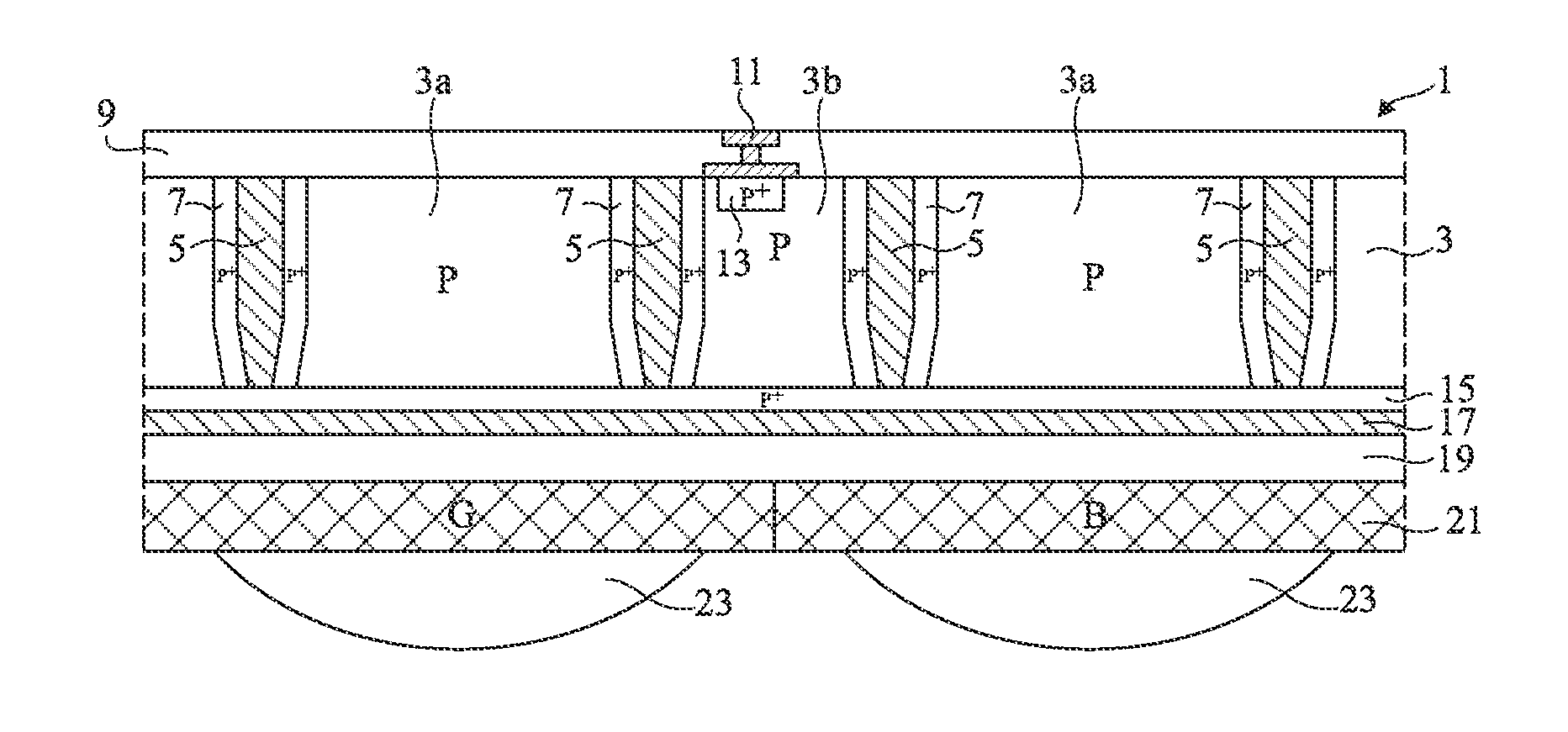

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
STMICROELECTRONICS (CROLLES 2) SAS850 RUE JEAN MONNET CROLLES 38920
STMICROELECTRONICS SA29 BOULEVARD ROMAIN ROLLAND MONTROUGE 92120

International Classification(s)

  • [Classification Symbol]
  • [Patents Count]

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Marty, Michel Saint Paul D Varces, FR 72 848
Roy, Francois Seyssins, FR 107 538

Cited Art Landscape

Load Citation

Patent Citation Ranking

Forward Cite Landscape

Load Citation
