Microfluidic devices for multi-index biochemical detection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 1, 2020
Grant Date -
May 14, 2015
app pub date -
May 7, 2013
filing date -
May 7, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

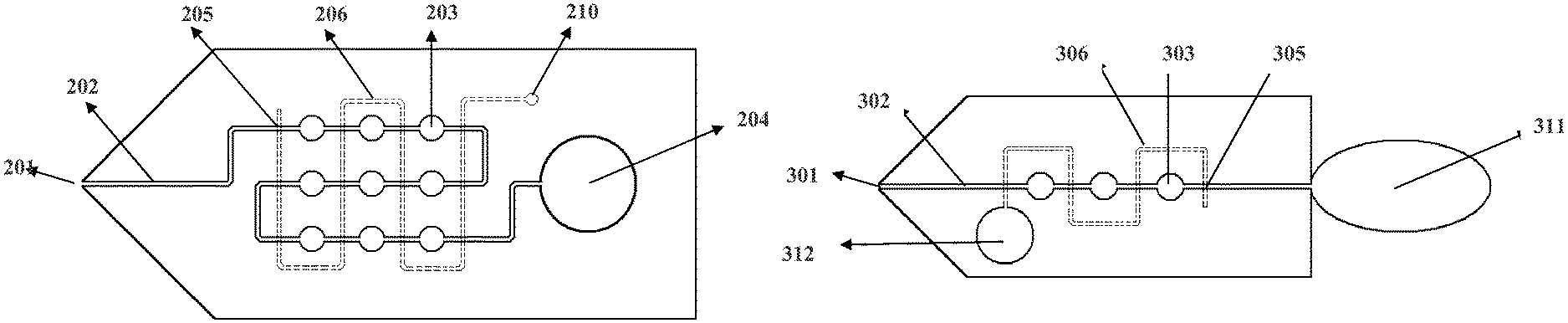

In one aspect, a microfluidic device for multiple reactions is provided, which comprises a reaction channel comprising multiple reaction chambers connected to a closed chamber or an elastic balloon outside of the microfluidic device, wherein a wall of the closed chamber is an elastic membrane; and a control channel comprising an elastic side wall, wherein the intersections between the side wall of the control channel with the reaction channel form multiple pneumatic microvalves. In another aspect, a method for conducting multiple reactions using the microfluidic device is provided, which comprises: a) filling the reaction chambers with a sample; and b) applying pressure to the control channel to expand the elastic side wall of the control channel, wherein the expanded elastic side wall forms a pneumatic microvalve that separates the reaction chambers.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F16K Class
- 1452 Applications Filed
- 1315 Patents Issued To-Date
- 90.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 1, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 1, 2032 |
