AXIAL TURBINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 14, 2015
app pub date -
Nov 7, 2014
filing date -
Nov 8, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

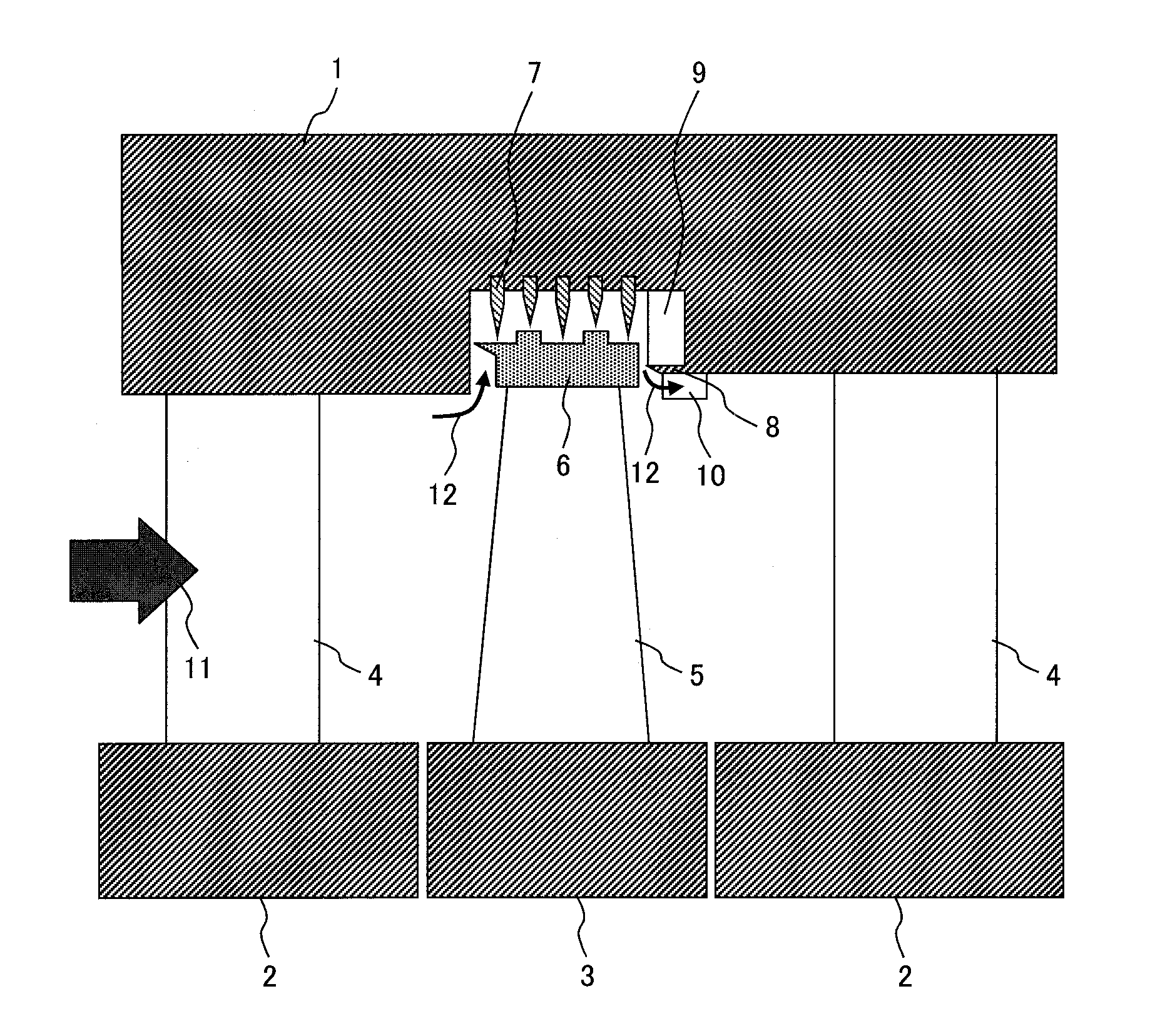

An axial turbine includes a plurality of ribs provided in such a way as to be sandwiched between the diaphragm outer ring and the axial seal fin in the gap between the shroud and the diaphragm outer ring, the ribs being extended from the diaphragm outer ring toward the shroud in the radial direction of the rotor and in the direction of the rotation axis thereof, and a guide plate provided in such a way as to be present along the axial seal fin and a face of the diaphragm outer ring, opposed to the rotor, so as to be extended in the rotation radial direction of the rotor.
