MOTOR/GENERATOR WITH COMBINATION CLUTCH AND BEARING ARRANGEMENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 20, 2014
filing date -
Nov 14, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

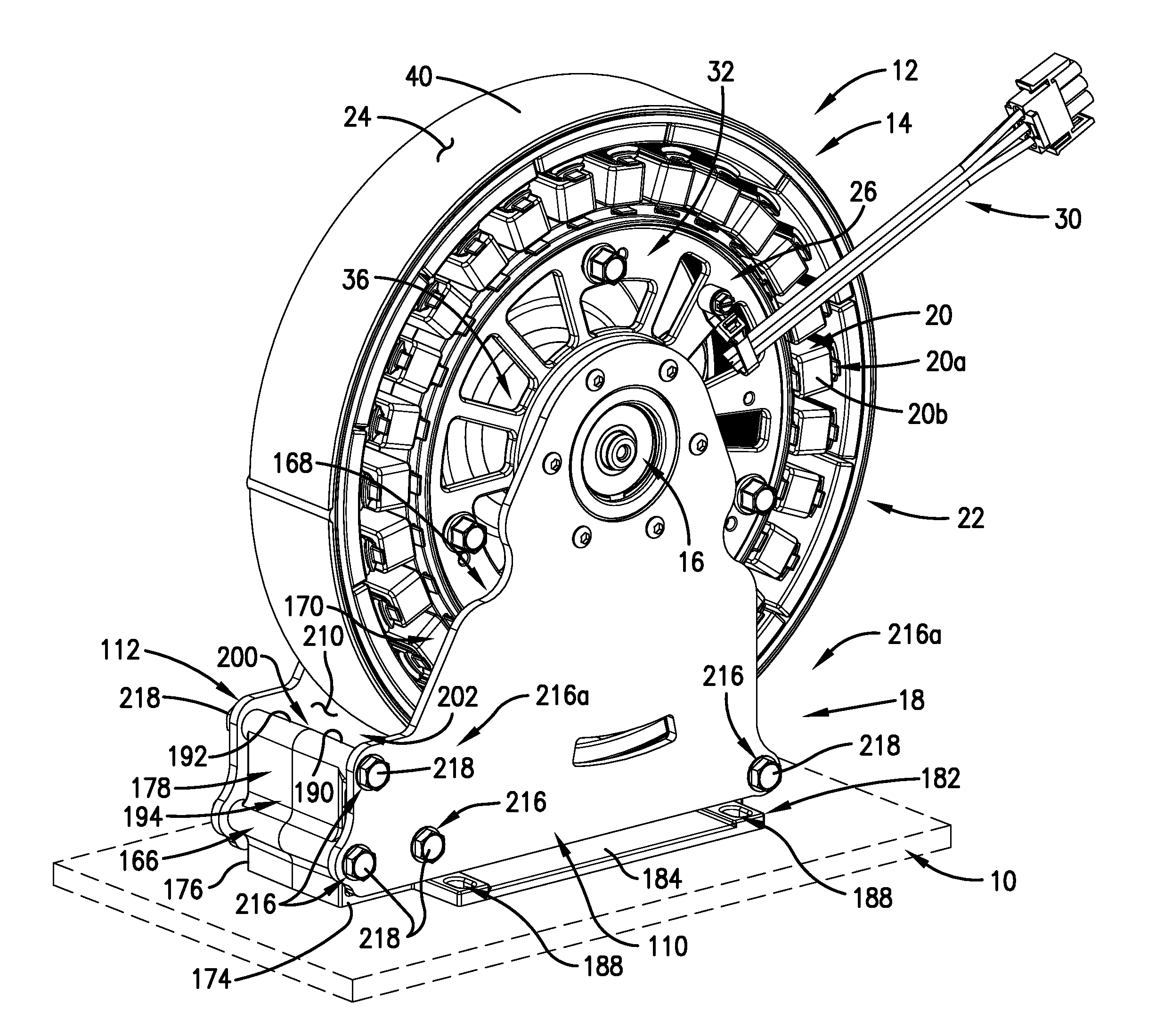

An electric motor or generator is provided. The motor or generator includes a rotor component rotatable about an axis, a stator, and a support assembly supporting the rotor component and the stator. The support assembly includes a shaft component rotatable about an axis and a bearing arrangement rotatably supporting the rotor component on the shaft component. The bearing arrangement includes a one-way bearing configured such that a first one of the components transmits torque to a second one of the components when the first component rotates in a first direction and the second component does not rotate in the first direction relative to the first component.
First Claim
Other Claims data not available
