Process for Producing Ammonia Synthesis Gas and a Method for Revamping a Front-End of an Ammonia Plant
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 14, 2015
app pub date -
Nov 8, 2013
filing date -
Nov 8, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

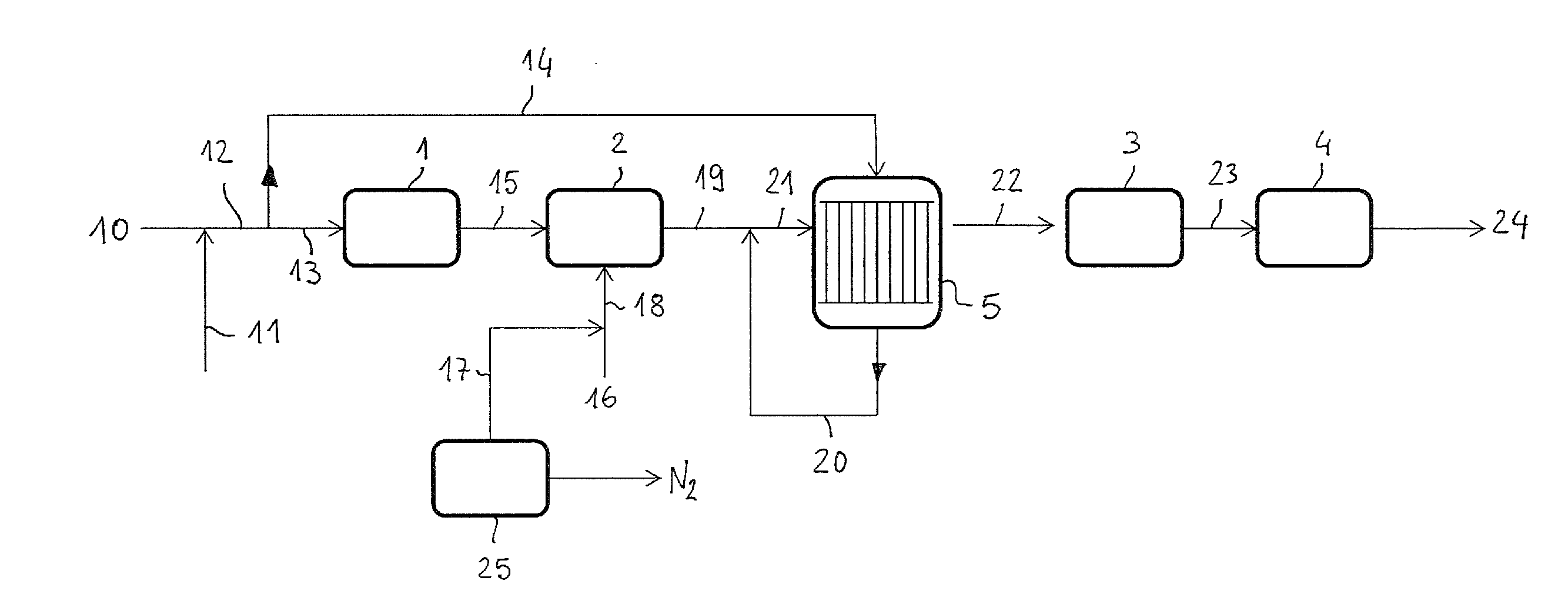

A process for producing ammonia make-up synthesis gas and a procedure for revamping a front-end of an ammonia plant for producing ammonia make-up synthesis gas are disclosed, wherein the make-up synthesis gas is produced by means of steam reforming of a hydrocarbon gaseous feedstock; said front-end includes a primary reformer, a secondary reformer, a shift conversion section, a CO2 removal section and optionally a methanation section; a shell-and-tube gas-heated reformer is installed after said secondary reformer, and a portion of the available feedstock is reformed in the tubes of said gas-heated reformer, and heat is provided to the shell side of said gas-heated reformer by at least a portion of product gas leaving the secondary reformer, possibly mixed with product gas leaving the tubes of said gas-heated reformer.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- C01B Class
- 18.77 % this patent is cited more than
- 10 Age
