PNEUMATIC TIRE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 14, 2015
app pub date -
Nov 11, 2014
filing date -
Nov 12, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

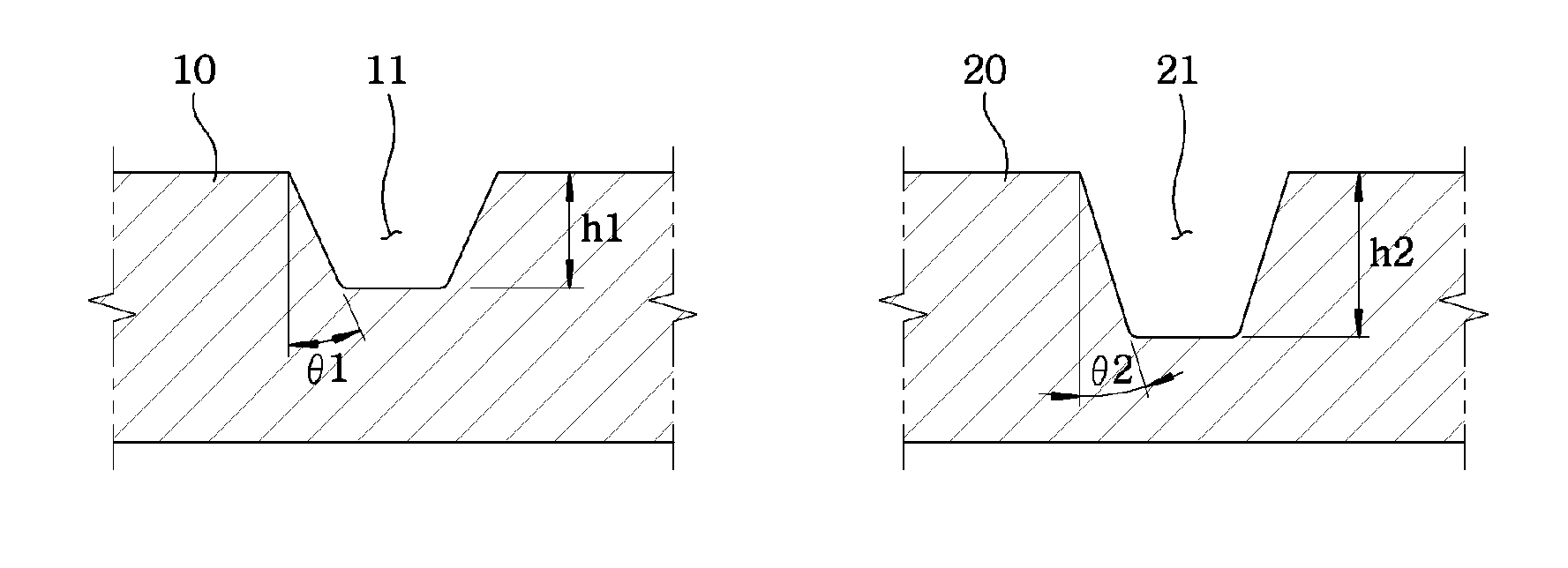

The present invention relates to a pneumatic tire of which the stiffness of tread blocks is improved in a circumferential direction. According to embodiments of the present invention, second grooves are formed to have a depth larger than the depth of a first groove so that the volume of the first blocks is similar to the volume of the second blocks and the stiffness of the first blocks is similar to the stiffness of the second blocks. Further, a first angle is made to be larger than a second angle so that the stiffness of the first blocks is similar to the stiffness of the second blocks. Accordingly, there is an effect of improving the braking performance or grip performance of a tire by making the stiffness of the tire uniform in the circumferential direction of the tire.
First Claim
Other Claims data not available
