State Condition Detection Device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 7, 2015
app pub date -
May 13, 2013
filing date -
Jun 13, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

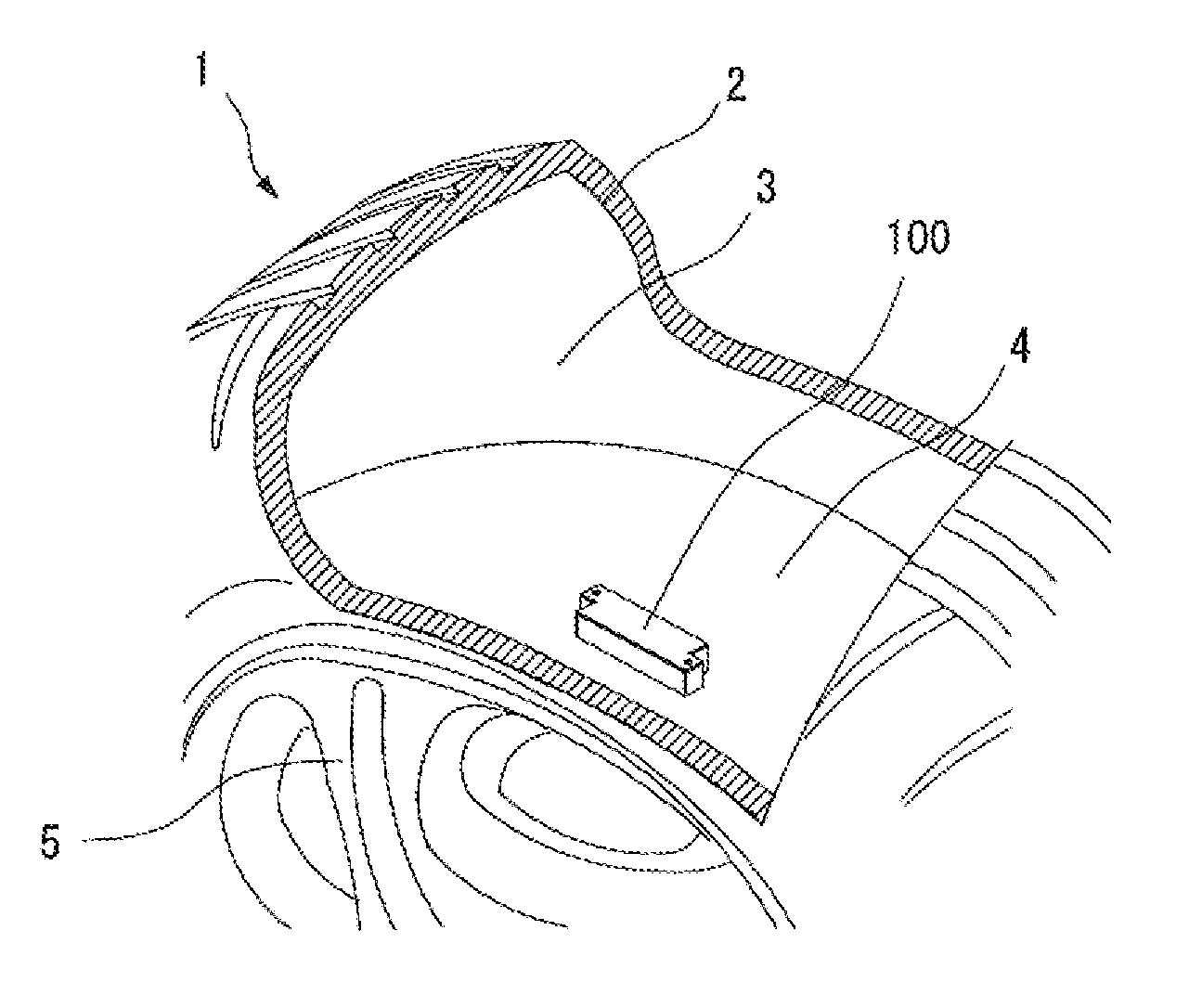

A first printed wiring substrate on which a detection and transceiver circuit, which detects and transmits a predetermined physical quantity of a tire, and printed wiring for an antenna are formed and a second printed wiring substrate on which printed wiring for the antenna is formed are disposed so as to oppose each other, and a planar conductor plate is provided by being fixed, so as to be positioned between an antenna and a metal face to which mounting takes place, on the second printed wiring substrate of a device main body in which the antenna is formed by conductively connecting the printed wirings for the antenna in a coil shape by a columnar connection conductor.
First Claim
Other Claims data not available
