SYSTEM FOR 3D RECONSTRUCTION OF AS-BUILT INDUSTRIAL MODEL FROM 3D DATA
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 30, 2015
app pub date -
Jun 24, 2014
filing date -
Oct 25, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

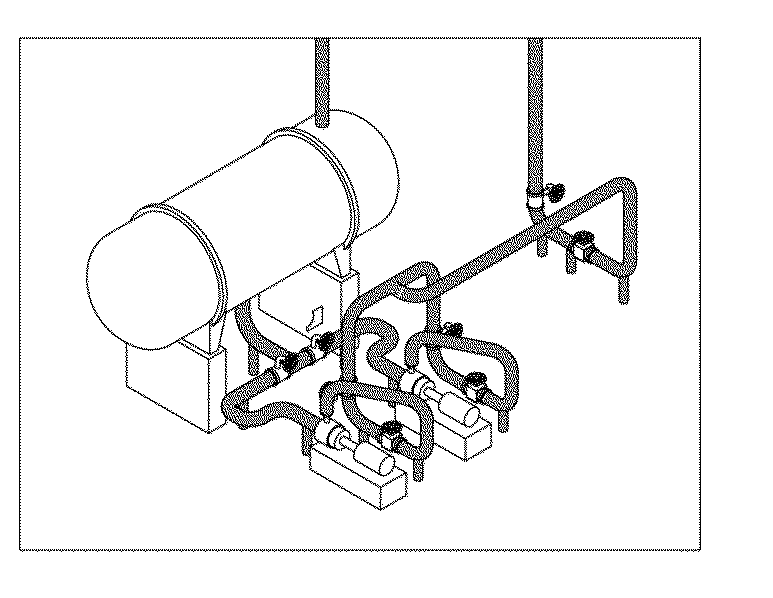

A system for constructing a 3D industrial model from 3D data according to an embodiment of the present invention may include an object extracting unit configured to extract first to nth objects from 3D data obtained using a 3D data acquisition device, a connection relation determining unit configured to select at least one of the first to nth objects as a reference object, and selects an object satisfying a first condition with respect to the selected reference object as a connection object, and an object determining unit configured to compare information on the reference object and the connection object with data including information on actual objects so as to determine at least one of the reference object and the connection object as a specific object.
First Claim
Other Claims data not available
