Methods and systems for powerline and radio frequency communications
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 2, 2016
Issued Date -
N/A
app pub date -
Oct 28, 2013
filing date -
Oct 28, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

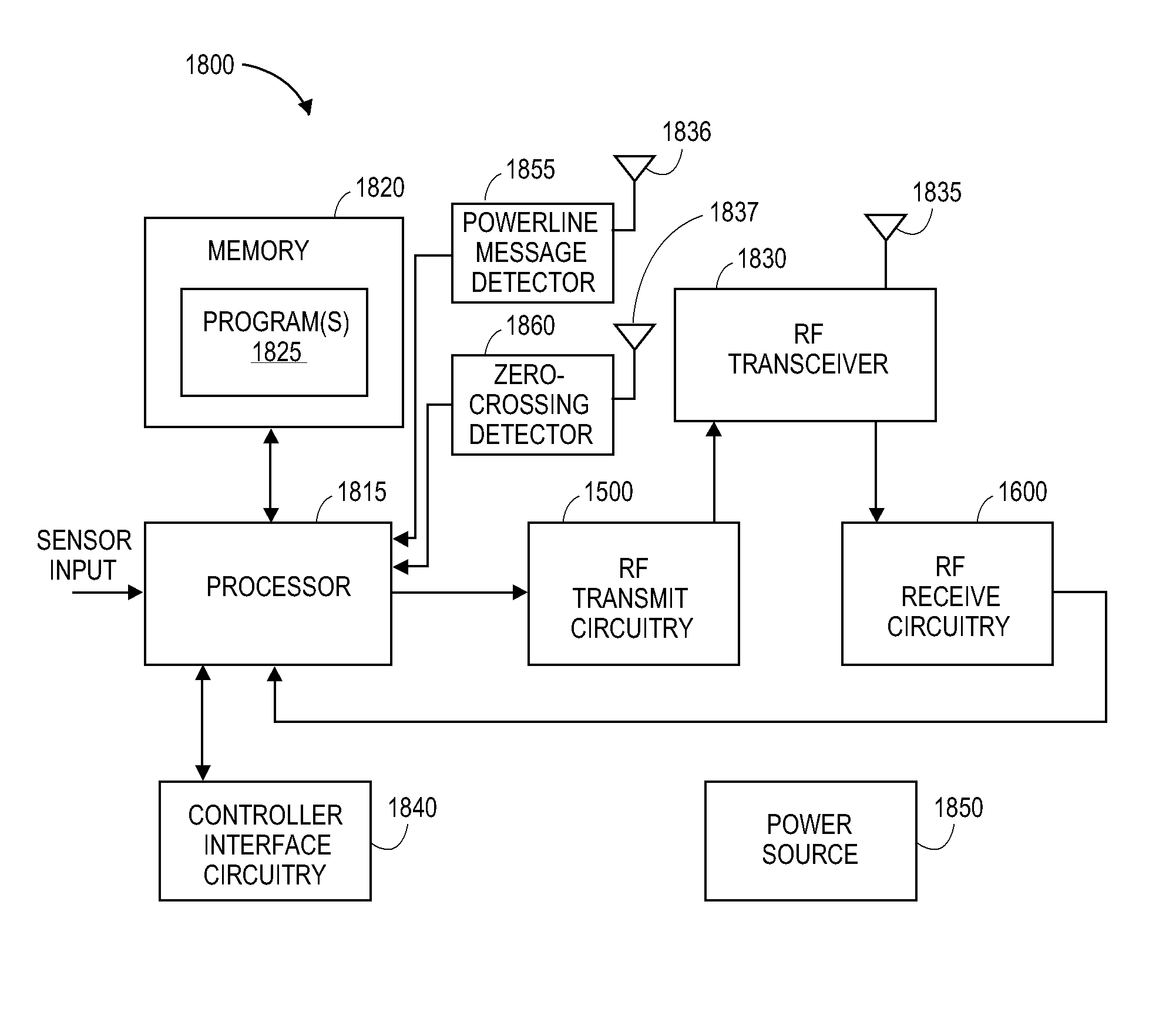

Disconnected from the powerline, a battery-powered receiver is configured to conserve power. The receiver communicates information between a local controller and a communication network that uses the powerline and a radio frequency (RF) band to propagate messages. An antenna wirelessly detects the presence of the powerline carrier signal that radiates into free space, which indicates a first message encoded onto the powerline. A computer processor wakes up from an inactive state based on the presence of the carrier signal and receives a second message via a second RF signal having a different frequency than the powerline carrier signal, and determines whether the device address in the second message is the assigned address of the receiver. If the message is not addressed to the receiver, the receiver returns to an inactive state.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H04L Class
- 23397 Applications Filed
- 19833 Patents Issued To-Date
- 84.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H04L Class
- 8.87 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 2, 2027 |
