Throttle Position Sensor (TPS) Clocker
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 30, 2015
app pub date -
Aug 27, 2014
filing date -
Oct 30, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

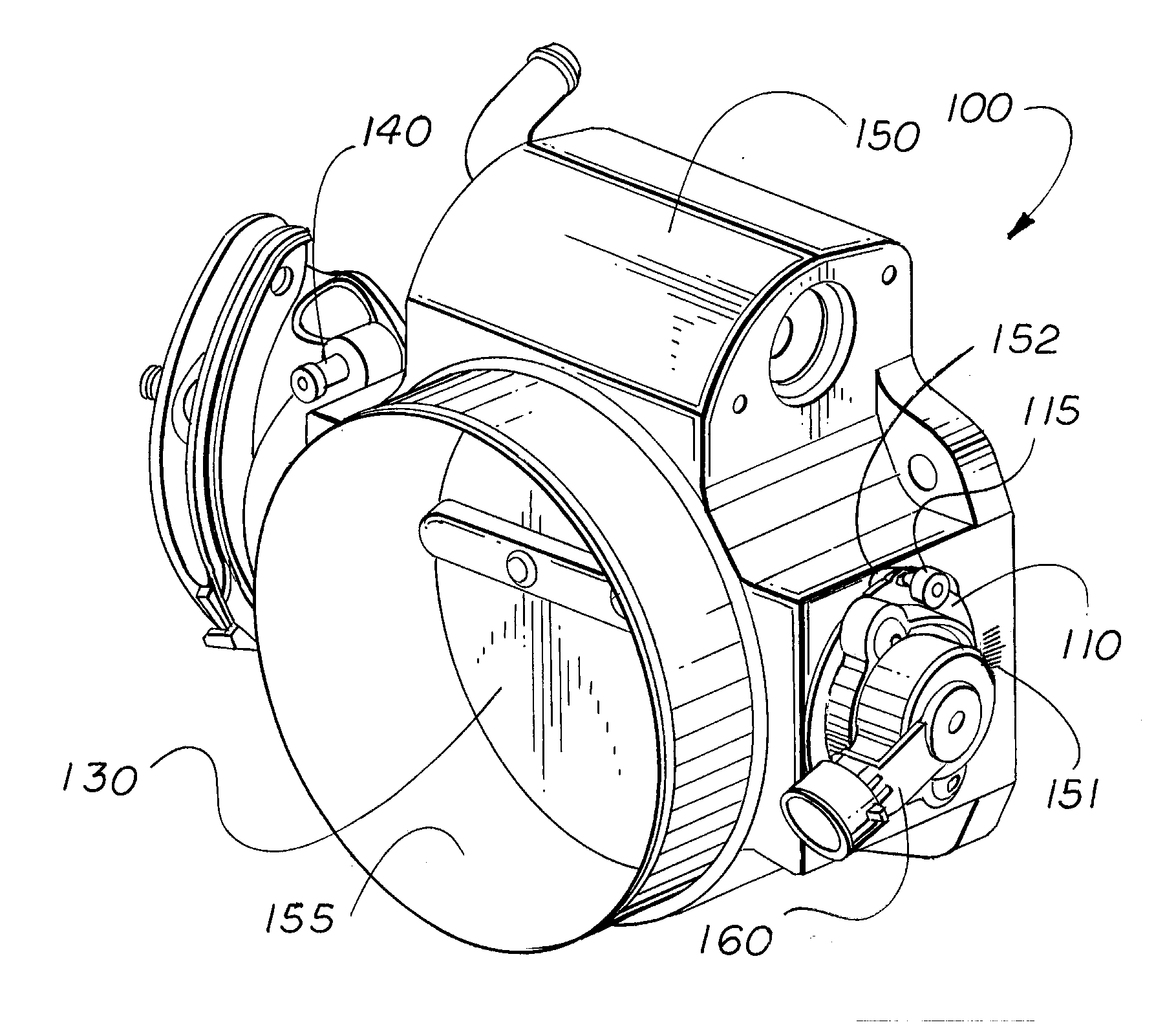

The current invention includes throttle body devices with an air intake, a throttle plate in the air intake including a throttle plate shaft, wherein the throttle plate shaft horizontally traverses the throttle body, a throttle position sensor (“TPS”) attached to an end of the throttle plate shaft, and a rotational adjustment ring disposed between the throttle position sensor and the throttle body. The throttle position sensor is coupled to the rotational adjustment ring, and the rotational adjustment ring is rotatably adjustable to allow adjustment of the voltages sent from the TPS to an engine control until (“ECU”) at given positions.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- F02D Class
- 8.82 % this patent is cited more than
- 10 Age
