GRIPPING SLEEVE WITH INTEGRATED GROUNDING MEMBER FOR ELECTRICAL CONNECTOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 23, 2015
app pub date -
Dec 29, 2014
filing date -
Nov 1, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

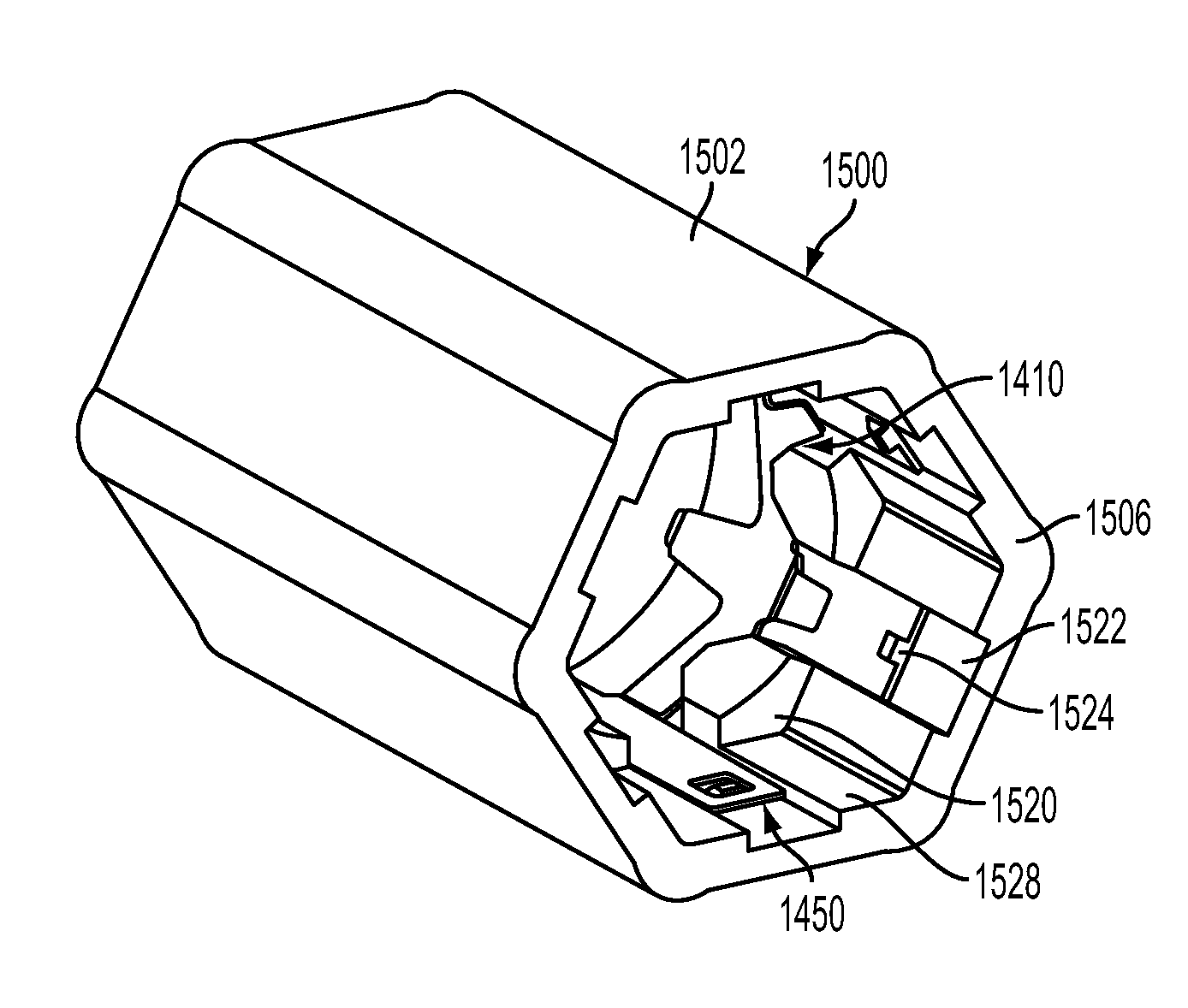

A grounding member for an electrical connector that has a conductive body including a ring portion that has opposite front and rear edges, the front edge is configured to face a coupling member of the electrical connector, and opposite inner and outer surfaces, the inner surface is configured to face a body of the electrical connector. At least a first resilient arm that extends from the front edge of the ring portion. The first resilient arm has a coupling member contact surface configured to contact the coupling member of the electrical connector. At least a second resilient arm that extends from the rear edge of the ring portion. The second resilient arm has a body contact surface configured to contact the body of the electrical connector. At least one sleeve engagement member that extends from the ring portion configured to engage a gripping sleeve.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- H01R Class
- 77.04 % this patent is cited more than
- 10 Age
