TURBO COMPRESSION SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 23, 2015
app pub date -
May 31, 2013
filing date -
May 31, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

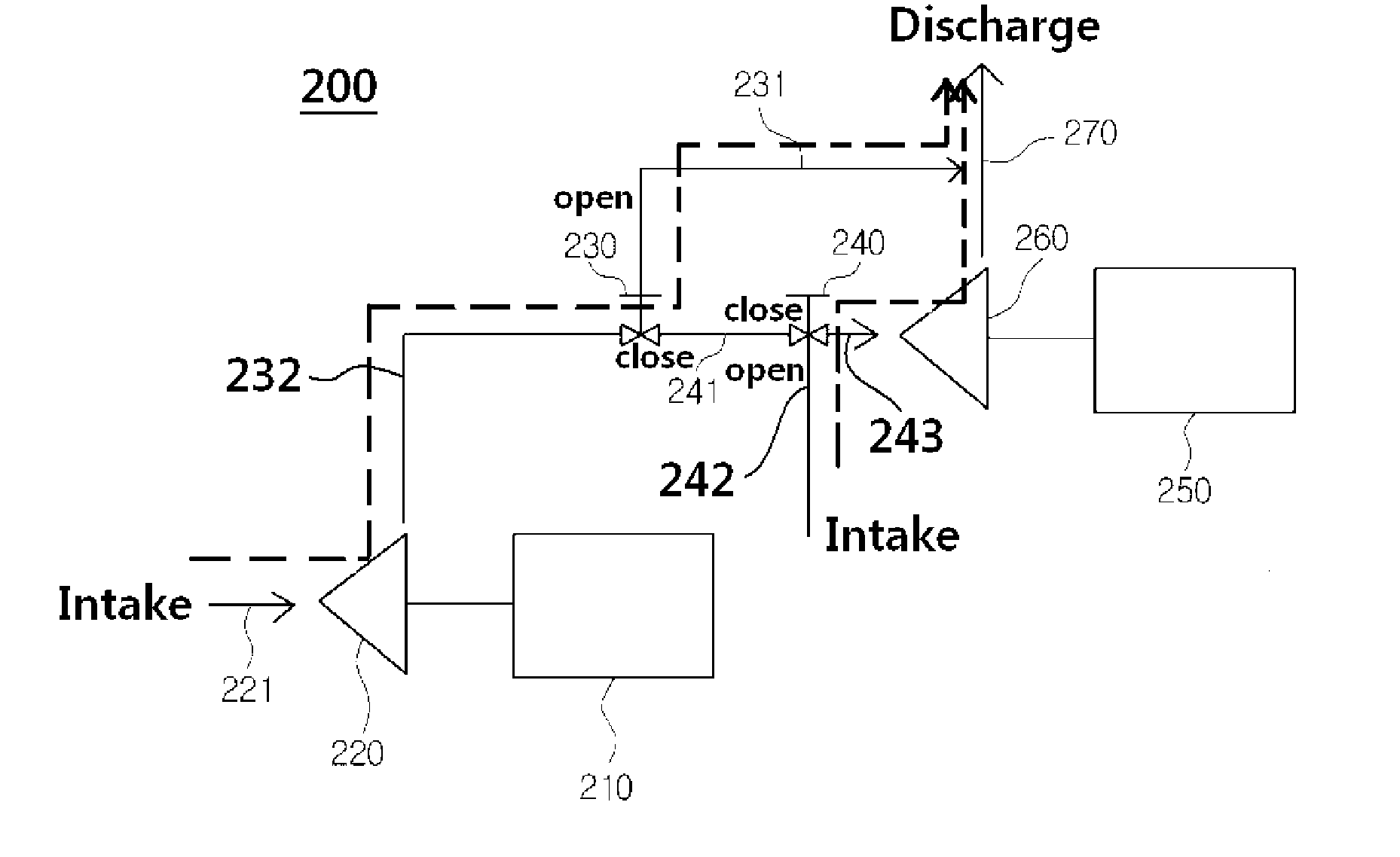

A turbo compression system comprises a first impeller having a first inlet and a first outlet; a second impeller having a second inlet and a second outlet; a second discharge flow path connected with the second outlet; a first discharge flow path communicating the second discharge flow path with the first outlet; a first valve provided at the first discharge flow path and controlling flowing of the fluid; a second intake flow path connected with the second inlet and selectively making the fluid flow into the second impeller; a second valve provided at one end of the second intake flow path; and a compression flow path connected with the first valve at one end of the compression flow path and connecting with the second intake flow path at the other end of the compression flow path.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | B1 | KR101360799 | May 31, 2012 |
| JP | A | JP2015518113 | May 31, 2013 |
| CN | A | CN104364530 | May 31, 2013 |
| WO | A1 | WO2013180538 | May 31, 2013 |
| EP | A1 | EP2857692 | May 31, 2013 |
International Classification(s)
- 2013 Application Filing Year
- F04D Class
- 1063 Applications Filed
- 941 Patents Issued To-Date
- 88.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F04D Class
- 0 % this patent is cited more than
- 10 Age
