ELECTRONIC DEVICE AND METAL THIN FILM-PROVIDED SPACER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 23, 2015
app pub date -
Jan 22, 2013
filing date -
Mar 9, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

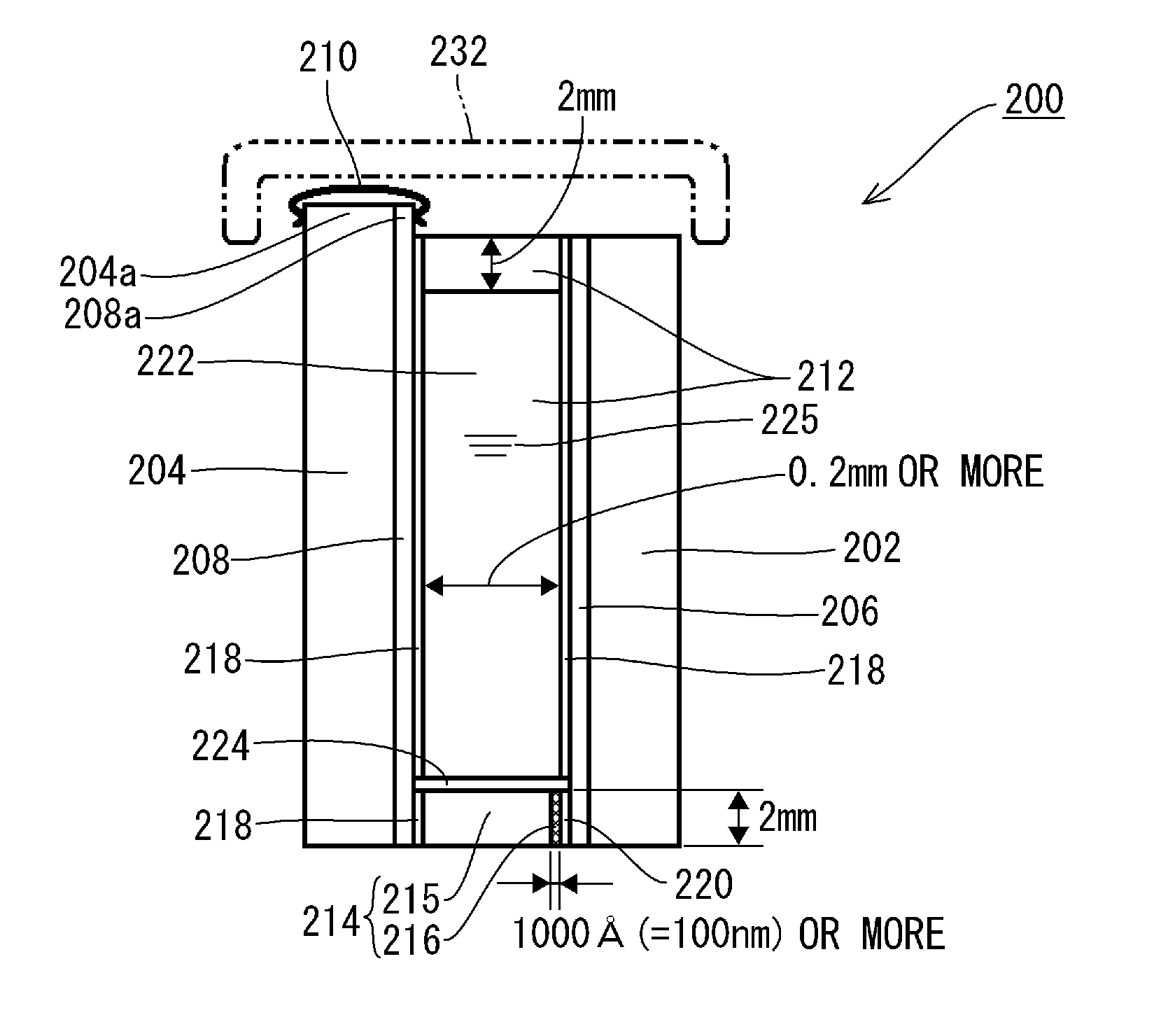

Provided is an electronic device such as an electrochromic device or a liquid-crystal device in which a bus bar can be disposed with a simple structure for at least one electrode film and a width of a region that does not provide an intended function of the electronic device can be reduced. An electronic device is formed by integrating two substrates with spacers interposed therebetween, the substrates including respective electrode films on respective surfaces facing each other. At least one of the spacers is formed by a metal thin film-provided spacer obtained by forming a metal thin film on one surface of an insulating plate material. The electrode film of the substrate and the metal thin film of the metal thin film-provided spacer are conductively joined to each other. The electrode film is conductively connected to a terminal connected to an external circuit, via the metal thin film.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G02F Class
- 7.97 % this patent is cited more than
- 10 Age
