Aerodynamic Trimmer Head For Use In Flexible Line Rotary Trimmers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 23, 2014
filing date -
Mar 4, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

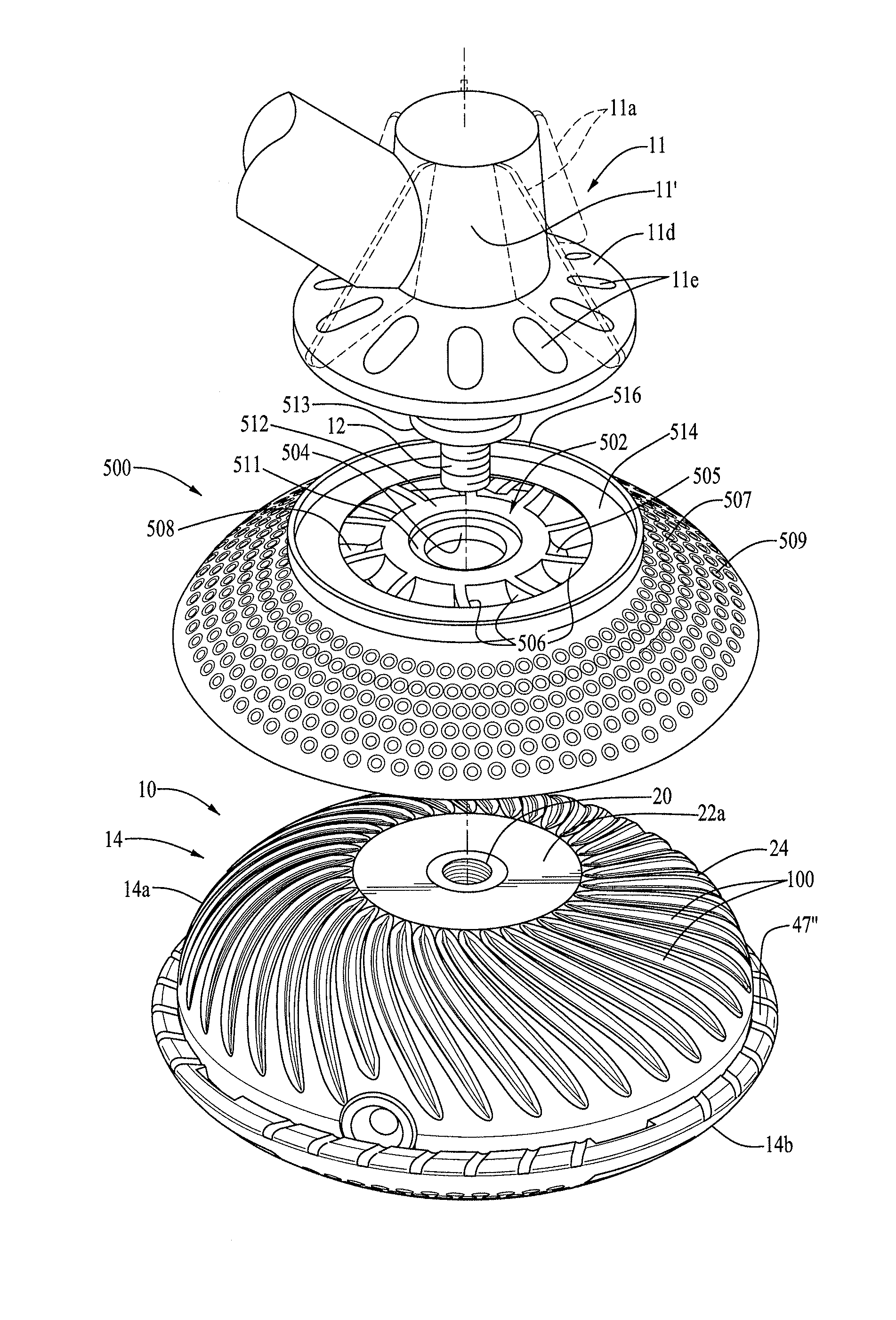

An aerodynamic trimmer head assembly for use in flexible line rotary trimmers including a trimmer head having a curvilinear upper head surface and a shroud having a curvilinear portion extending over the head surface. A plurality of ribs extend downwardly and forwardly in the direction of rotation between the head surface and shroud defining a plurality of channels extending between portions of the upper head surface and shroud along curvilinear paths defined by the ribs. The channels define inlet openings in an upper portion of the shroud and outlet openings about the lower end portion thereof During rotation of the head and shroud, air is drawn downwardly about the drive mechanism, through the channel inlets, into and through the channels and outwardly therefrom at a forward inclination about the line projecting from the housing thereby cooling the drive mechanism of the rotary trimmer and reducing aerodynamic drag on the line.
First Claim
Other Claims data not available
