COOKING EXHAUST FILTER SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 13, 2014
filing date -
Oct 11, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

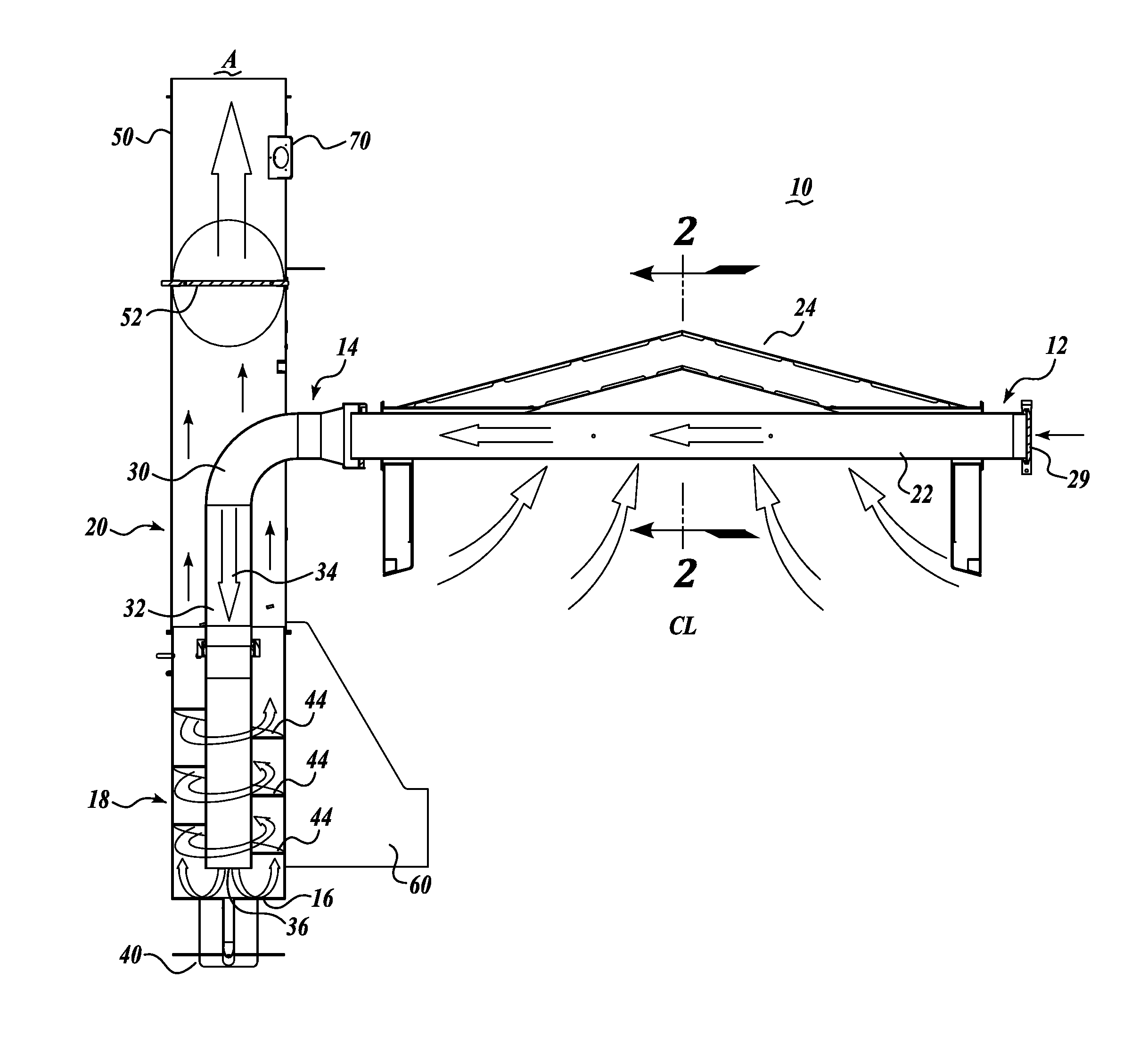

A cooking exhaust filter system 10 includes a collection duct structure 12 positionable over a cooking location CL. The transfer duct 14 receives the cooking exhaust from the collection duct structure 12 and changes the direction of flow of the cooking exhaust to direct such exhaust against an abutment. From such abutment, the cooking exhaust flows through the baffle assembly 18 which forces the cooking exhaust to flow in a helical path thereby forcing the particles in the cooking exhaust to the outside of the flow stream and against the walls of the baffle assembly to adhere thereto. The exhaust gas then flows through an outlet duct system into the atmosphere.
First Claim
Other Claims data not available
