NOZZLE PLATE FOR A GRANULATING DEVICE, AND GRANULATING DEVICE HAVING A NOZZLE PLATE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 12, 2014
filing date -
Jun 15, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

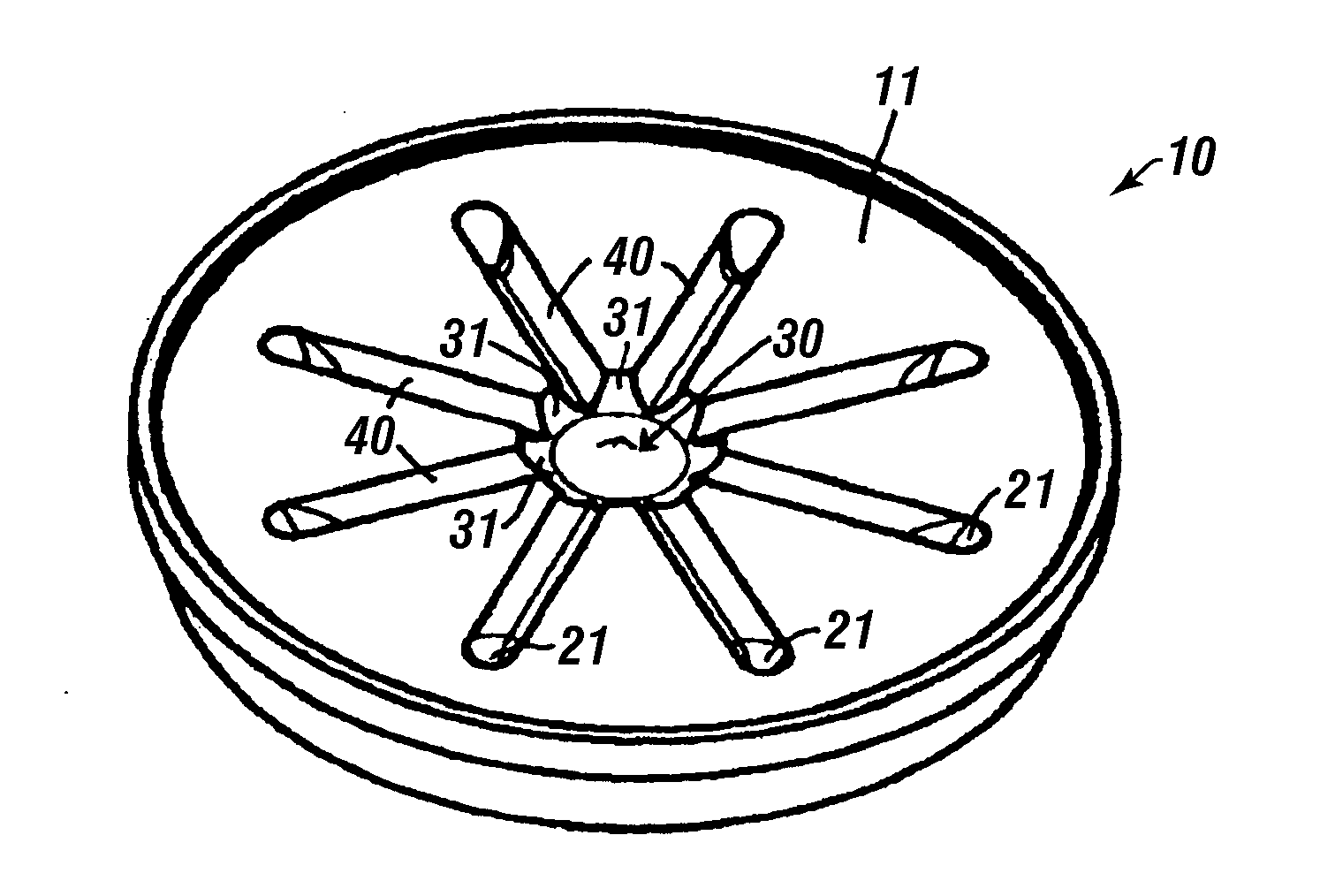

A nozzle plate for a granulating device. The nozzle plate has a plurality of nozzles for the passage of melt, wherein the nozzles are arranged such that they lie on a circle about a center axis. Each nozzle has a nozzle channel and at least one nozzle opening. A recess for receiving a melt flow is formed on the surface of the nozzle plate opposite the surface comprising the nozzle opening. The recess can also be centered on the center axis. A plurality of flow channels in fluid communication with the recess and at least one flow channel are formed in the nozzle plate extending radially away from the center. A granulating device having such a nozzle plate.
First Claim
Other Claims data not available
