CRIMP TERMINAL, CABLE WITH TERMINAL, AND CABLE HARNESS STRUCTURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 9, 2014
filing date -
Feb 21, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

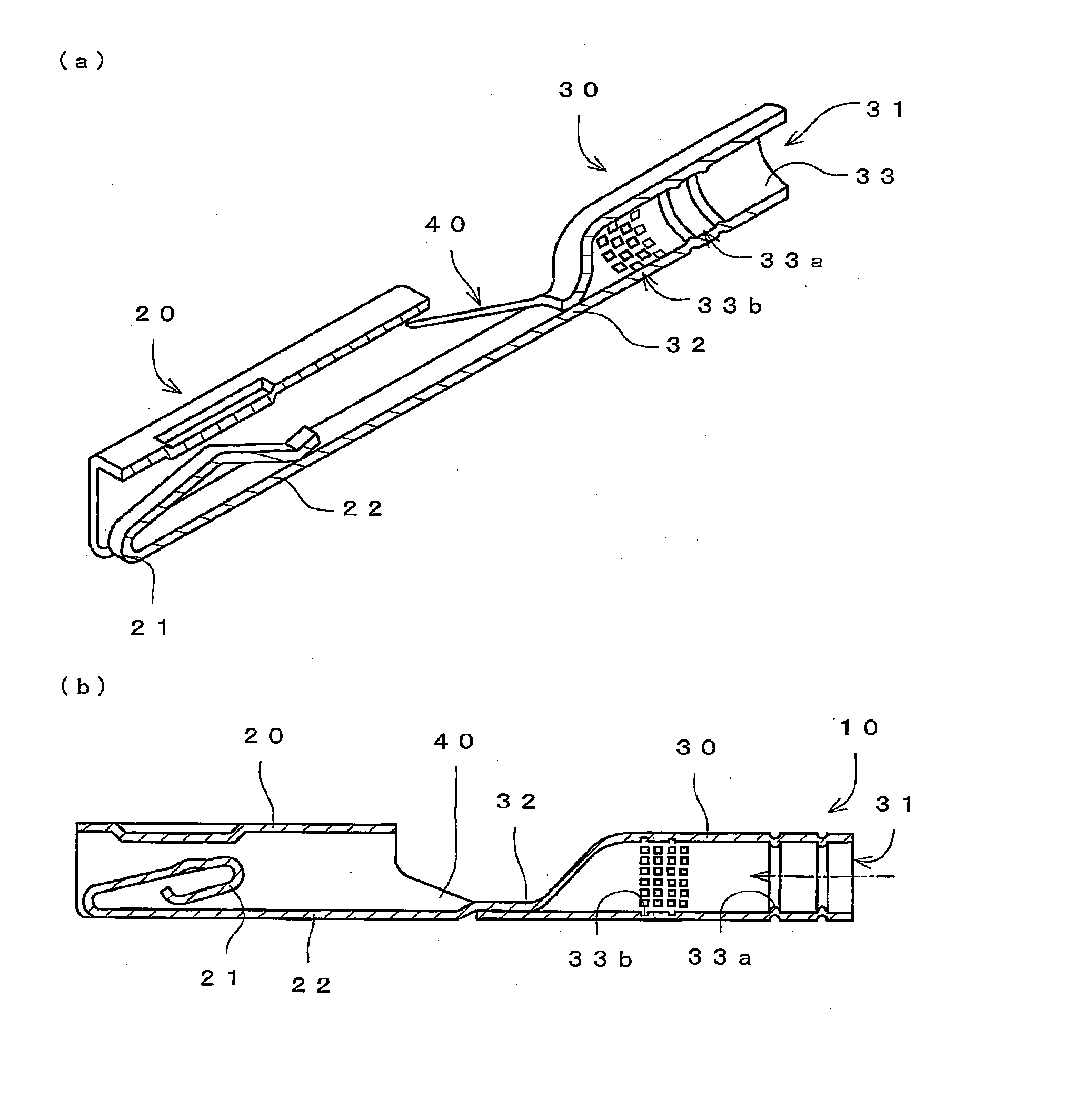

A crimp terminal (10) comprises a box part (20) and a cable connector (30). The box part (20) is connected to another terminal. The cable connector (30) is coupled with the box terminal (20) and connected with a covered cable (50). Also, the cable connector (30) includes a hollow formed by welding a metal plate, in which a pressing part for conduction (33b) and a compression part for waterproofing (33a) are formed. The pressing part for conduction (33b) presses a conduction part (51) of the covered cable (50) to ensure conduction with the covered cable. The compression for waterproofing (33a) presses and compresses a covered part (52) of the covered cable (50) inwardly to prevent water from entering inside.
