Four Bar Drive Link Simulator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 19, 2014
filing date -
Aug 24, 2010
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

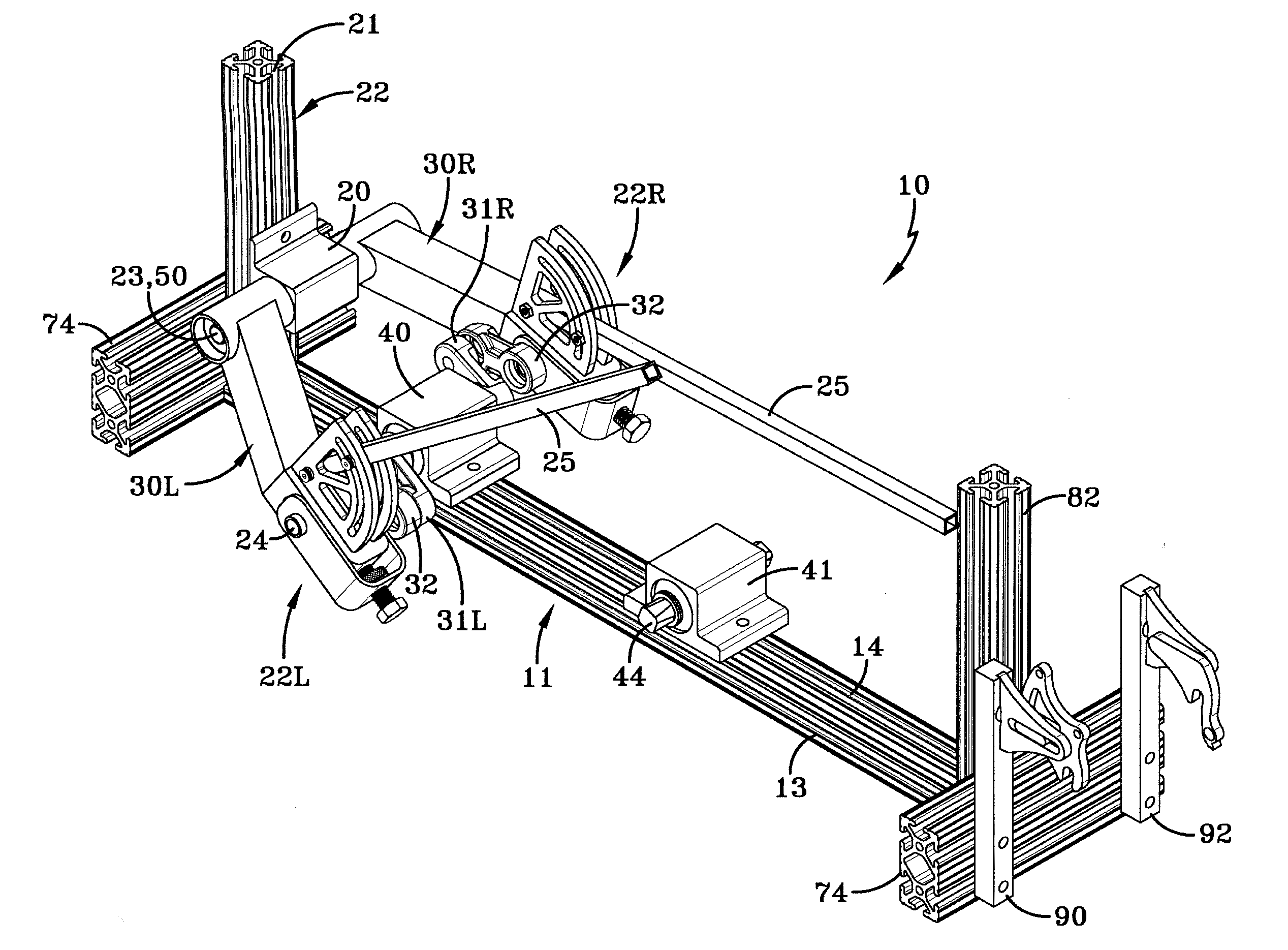

This invention relates to a mechanical fixture which simulates a four bar link drive system for pedal driven scooters and bicycles and the resulting drive system. A four bar drive link system simulator has a frame assembly, a proximal hinge attachment bracket, a bottom bracket simulator, a pair of crank levers, a pair of coupling levers and a pair of pedal levers. The frame assembly has a plurality of guide rails, including at least a proximal hinge adjustment rail, and a frame rail. The proximal hinge attachment bracket is connected to the proximal hinge adjustment rail. The bottom bracket simulator is attached or otherwise connected to the frame simulator rail.
