Multi-Spectral Defect Inspection for 3D Wafers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 12, 2015
app pub date -
Nov 15, 2014
filing date -
Nov 21, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

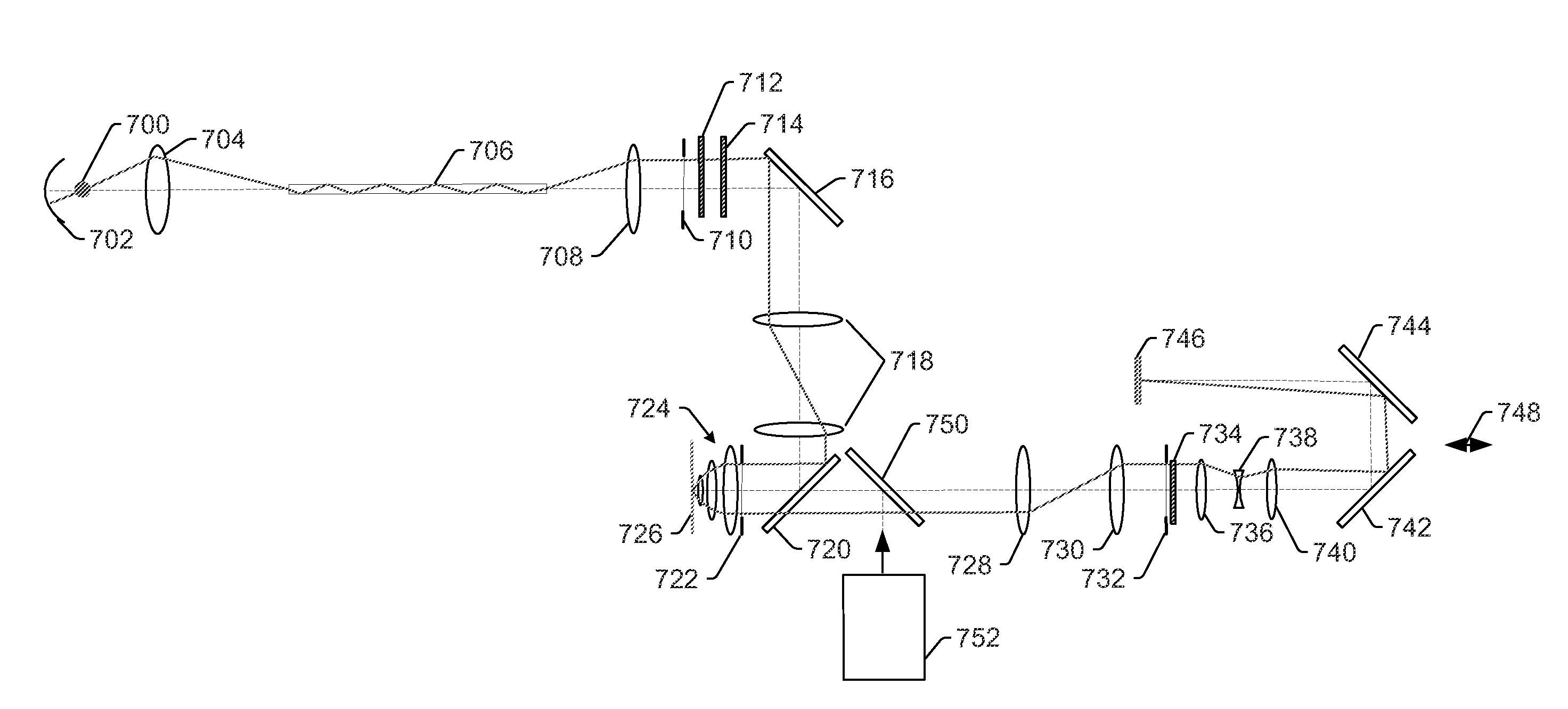

Multi-spectral defect inspection for 3D wafers is provided. One system configured to detect defects in one or more structures formed on a wafer includes an illumination subsystem configured to direct light in discrete spectral bands to the one or more structures formed on the wafer. At least some of the discrete spectral bands are in the near infrared (NIR) wavelength range. Each of the discrete spectral bands has a bandpass that is less than 100 nm. The system also includes a detection subsystem configured to generate output responsive to light in the discrete spectral bands reflected from the one or more structures. In addition, the system includes a computer subsystem configured to detect defects in the one or more structures on the wafer using the output.
