APPARATUS AND METHOD FOR REDUCING ELECTRICAL ARCING IN A CIRCUIT BREAKER WHILE TRANSITIONING TO A CLOSED CIRCUIT CONDITION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 12, 2015
app pub date -
Jul 15, 2014
filing date -
Sep 11, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

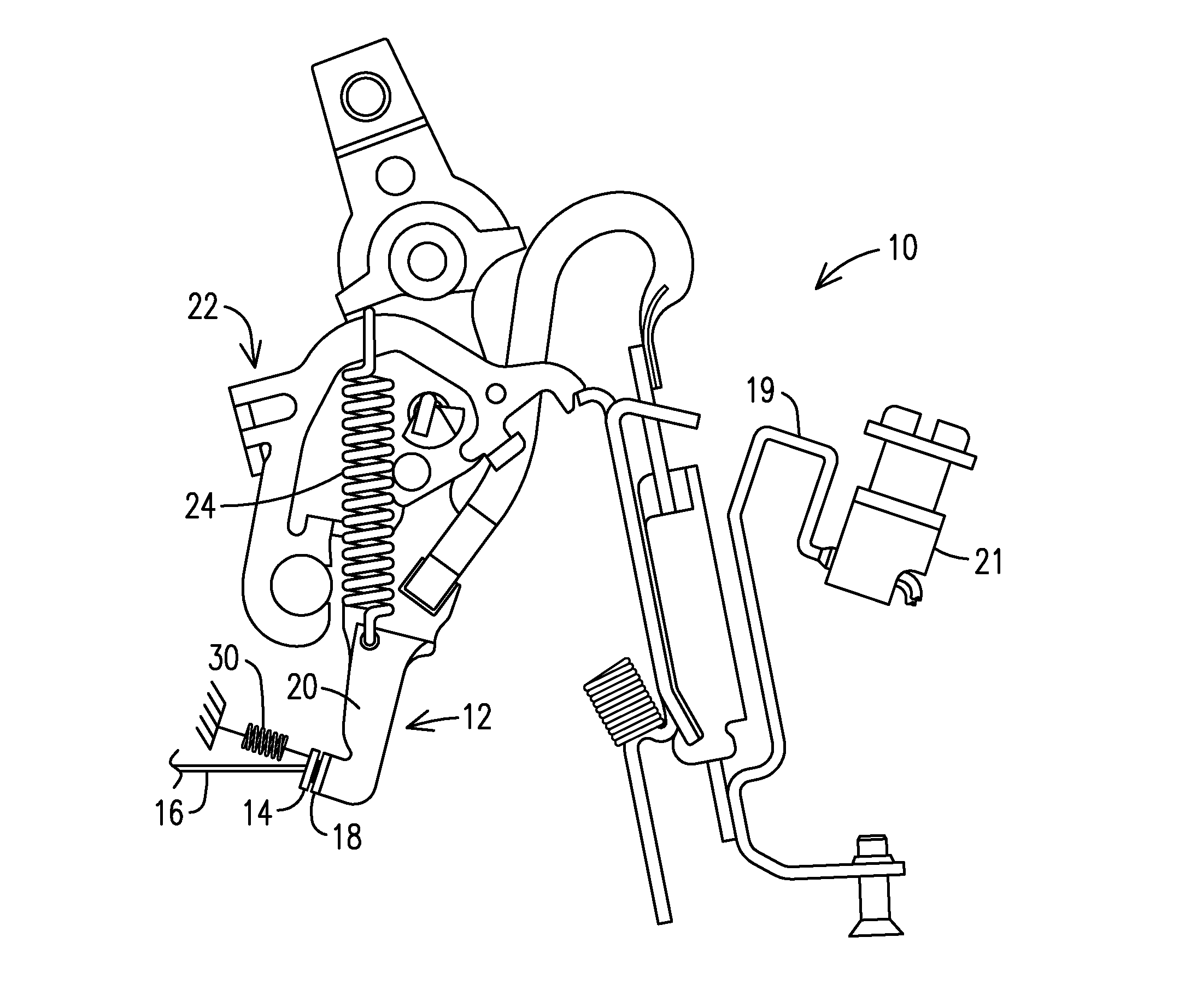

Apparatus and method for reducing formation of electrical arcing in a circuit breaker while transitioning to a closed circuit condition are disclosed. An electrical contact assembly (12) includes a stationary contact (14) and a movable contact (18) responsive to an operating mechanism (22) to move towards the stationary contact and initiate a closed circuit condition. An oscillatory element (30) is disposed opposite a side of the stationary contact that makes contact with the movable contact during the closed circuit condition. The oscillatory element is configured to provide a transient response effective to adapt shock energy resulting from impact of the movable contact with the stationary contact to joint oscillatory motion so that the stationary contact and the movable contact remain interconnected to one another during the joint oscillatory motion, thus reducing formation of electrical arcing while transitioning to the closed circuit condition.
First Claim
Other Claims data not available
