RECEPTACLE ASSEMBLY HAVING A PLURALITY OF TERMINATION POINTS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 5, 2015
app pub date -
Aug 28, 2013
filing date -
Aug 28, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

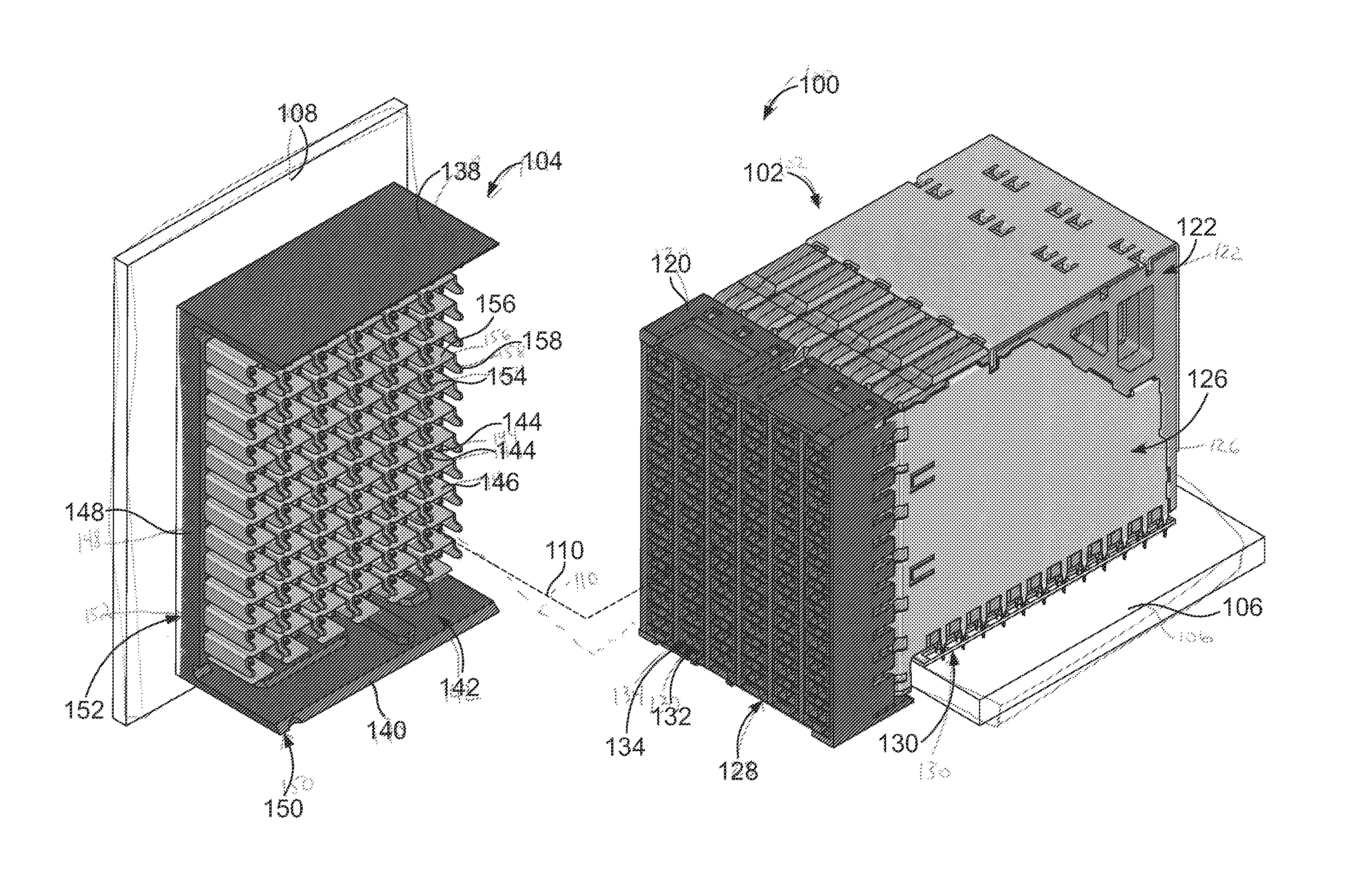

A receptacle assembly includes a contact module having a conductive holder and a frame assembly held by the conductive holder. The conductive holder has a first holder member and second holder member coupled to the first holder member. The conductive holder has a chamber between the first and second holder members divided into a plurality of channels by first tabs of the first holder member and second tabs of the second holder member. The first tabs have posts extending therefrom and the second tabs have holes receiving the posts of the first tabs. Each post has a plurality of termination points with the corresponding tab. The first and second holder members are electrically connected to one another at the termination points. The first and second tabs pass between contacts of the frame assembly to provide electrical shielding therebetween.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- H01R Class
- 11.37 % this patent is cited more than
- 10 Age
