US Patent Application No: 2015/0062,451

LIQUID CRYSTAL DISPLAY DEVICE

---

Abstract

---

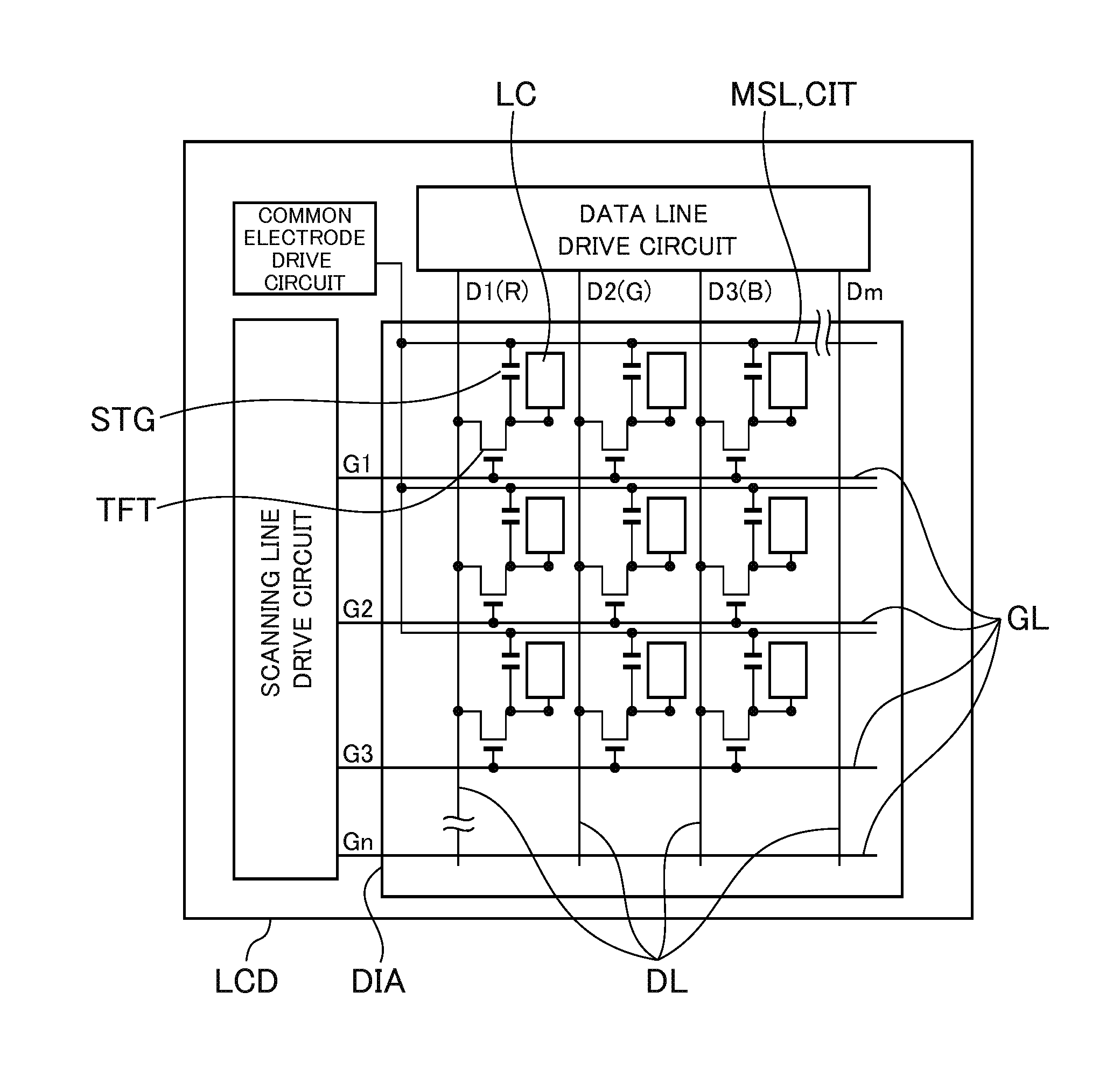

A first insulating film is formed between a pixel electrode and a thin film transistor. The pixel electrode is connected to a conductive electrode of the thin film transistor via a contact hole formed in the first insulating film. The common electrode is formed so as to overlap a data signal line in plan view, and a metal wiring, which is electrically connected to the common electrode, is formed so as to overlap at least a part of the contact hole in plan view.

---



---

Description

---

Claims

---

Claims data not available

---
