VISION-BASED AUGMENTED REALITY SYSTEM USING INVISIBLE MARKER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 5, 2014
filing date -
Jul 30, 2004
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

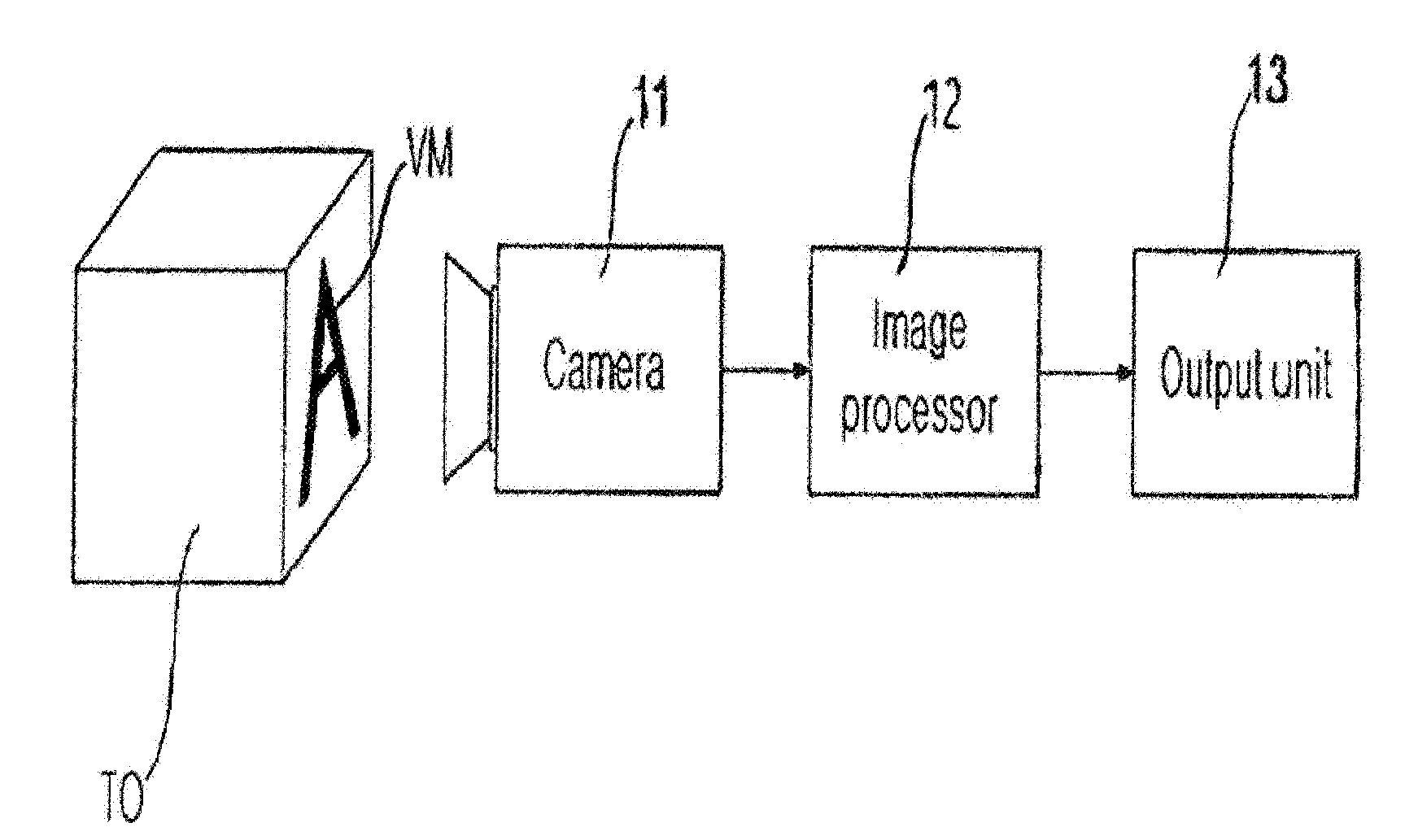

A vision-based augmented reality system using an invisible marker indicates an invisible marker on a target object to be tracked, such that it can rapidly and correctly track the target object by detecting the invisible marker. The augmented reality system includes a target object (TO) including an infrared marker (IM) drawn by an invisible infrared light-emitting material; a visible-ray camera (110) for capturing an image of the TO; an infrared-ray camera (120) for capturing an image of the IM included in the TO image; an optical axis converter for allowing the infrared-ray camera (120) and the visible-ray camera (110) to have the same viewing point; an image processing system (140) for rendering a prepared virtual image to the TO image to generate a new image.
First Claim
Other Claims data not available
