VARIABLE VOLTAGE CIRCUIT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 5, 2015
app pub date -
Aug 28, 2014
filing date -
Aug 28, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

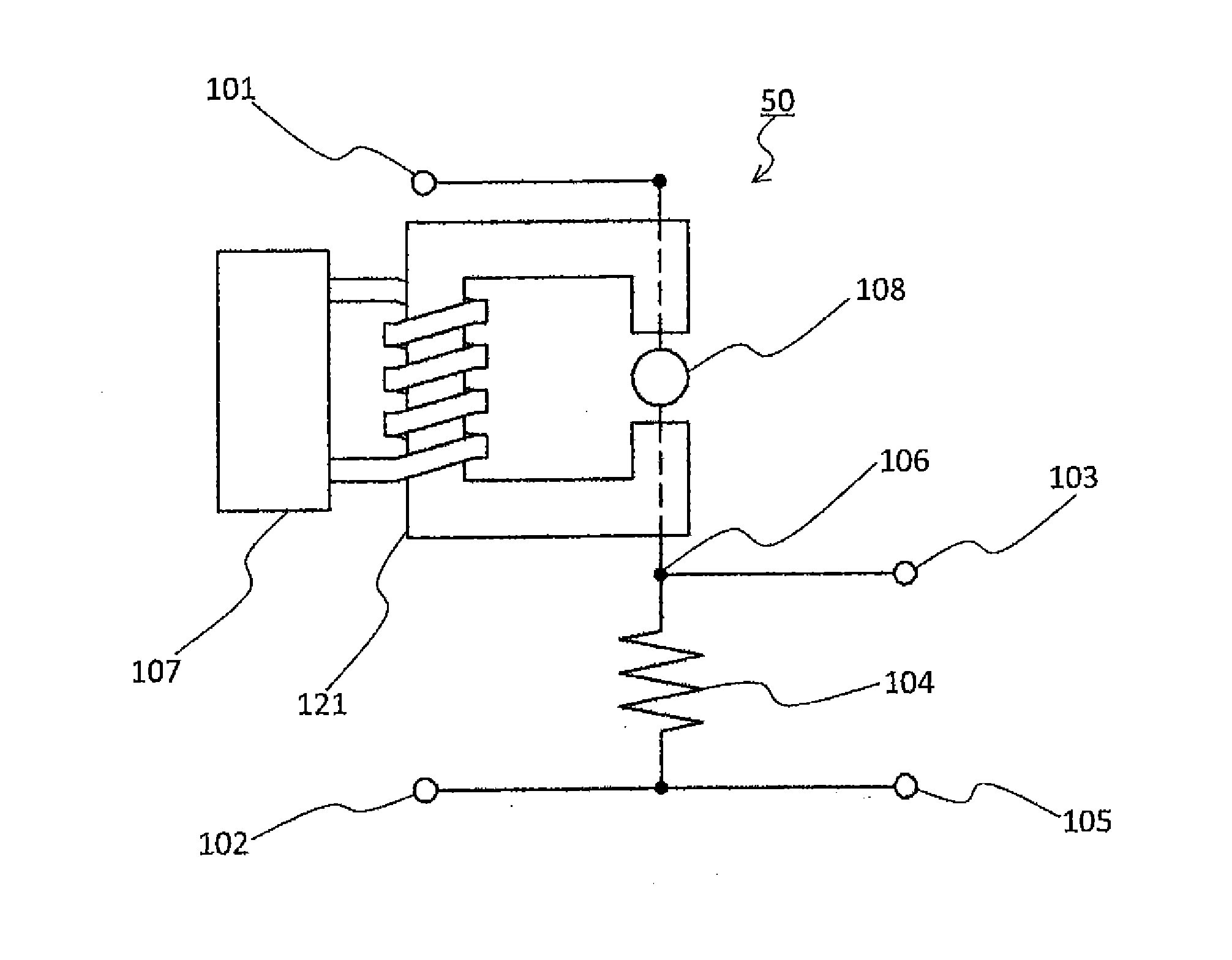

In a variable voltage circuit 50, a resistive element 104 and a magnetoresistance effect element 108 are connected in series between a first voltage source 101 and a second voltage source 102. A magnetic field supply mechanism 121 that applies a magnetic field to the magnetoresistance effect element 108 is provided in the vicinity of the magnetoresistance effect element 108. The magnetic field supply mechanism 121 can vary the resistance value of the magnetoresistance effect element 108 by varying the magnetic field. A node 106 between the resistive element 104 and the magnetoresistance effect element 108 is connected to an output terminal 103.
First Claim
Other Claims data not available
