LIGHT EMITTING DIODE PACKAGE HAVING ZENER DIODE COVERED BY REFLECTIVE MATERIAL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 5, 2015
app pub date -
Mar 21, 2014
filing date -
Aug 29, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

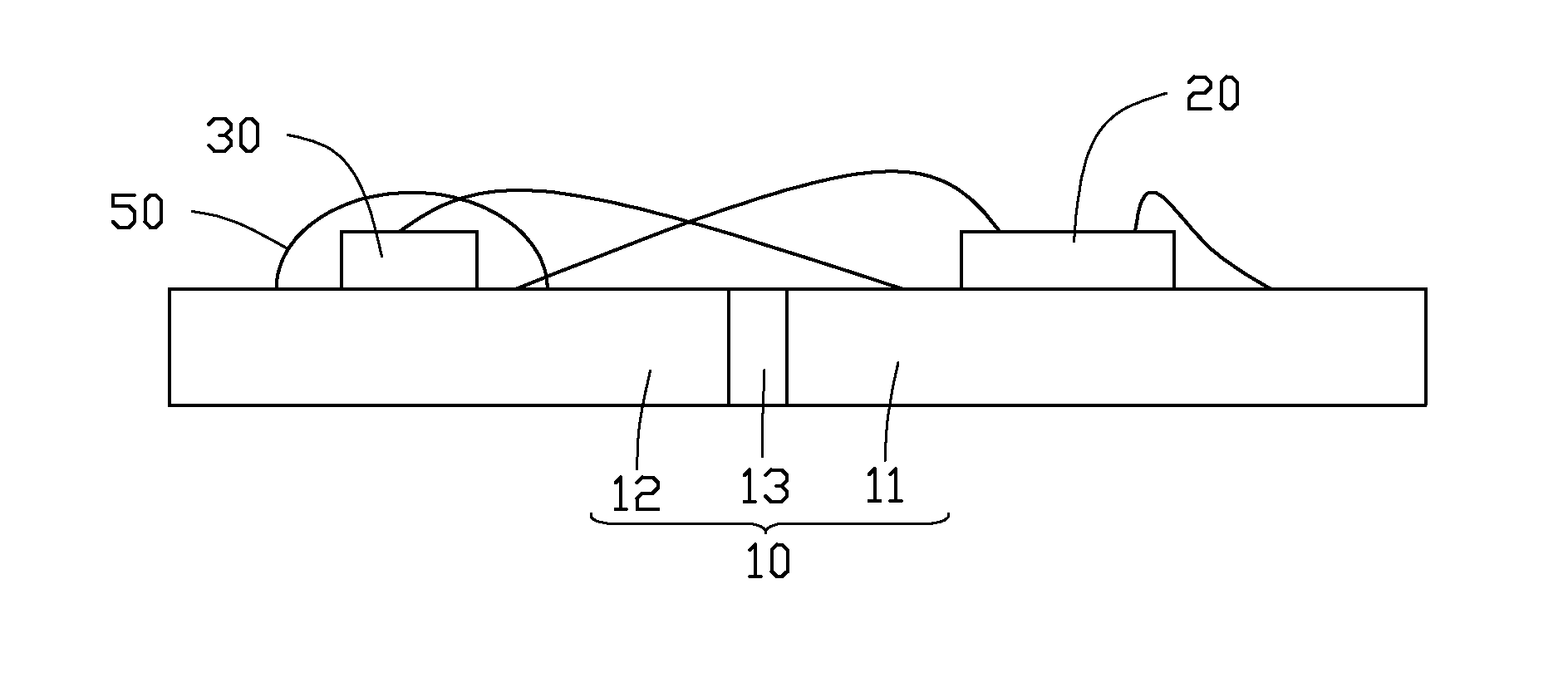

An exemplary light emitting diode package includes a substrate comprising a first electrode, a second electrode and an insulation layer electrically insulating the first electrode from the second electrode; a light emitting diode is located on the substrate, and electrically connects with the first and second electrodes; a zener diode is located on the substrate, and electrically connects with the first and second electrodes; and a reflecting layer is formed on the zener diode to reflect light emitted from the light emitting diode and toward the zener diode. The disclosure also relates to a method for manufacturing the light emitting diode package.
First Claim
Other Claims data not available
