Modular Focus System for Image Based Readers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 7, 2014
filing date -
Jan 12, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

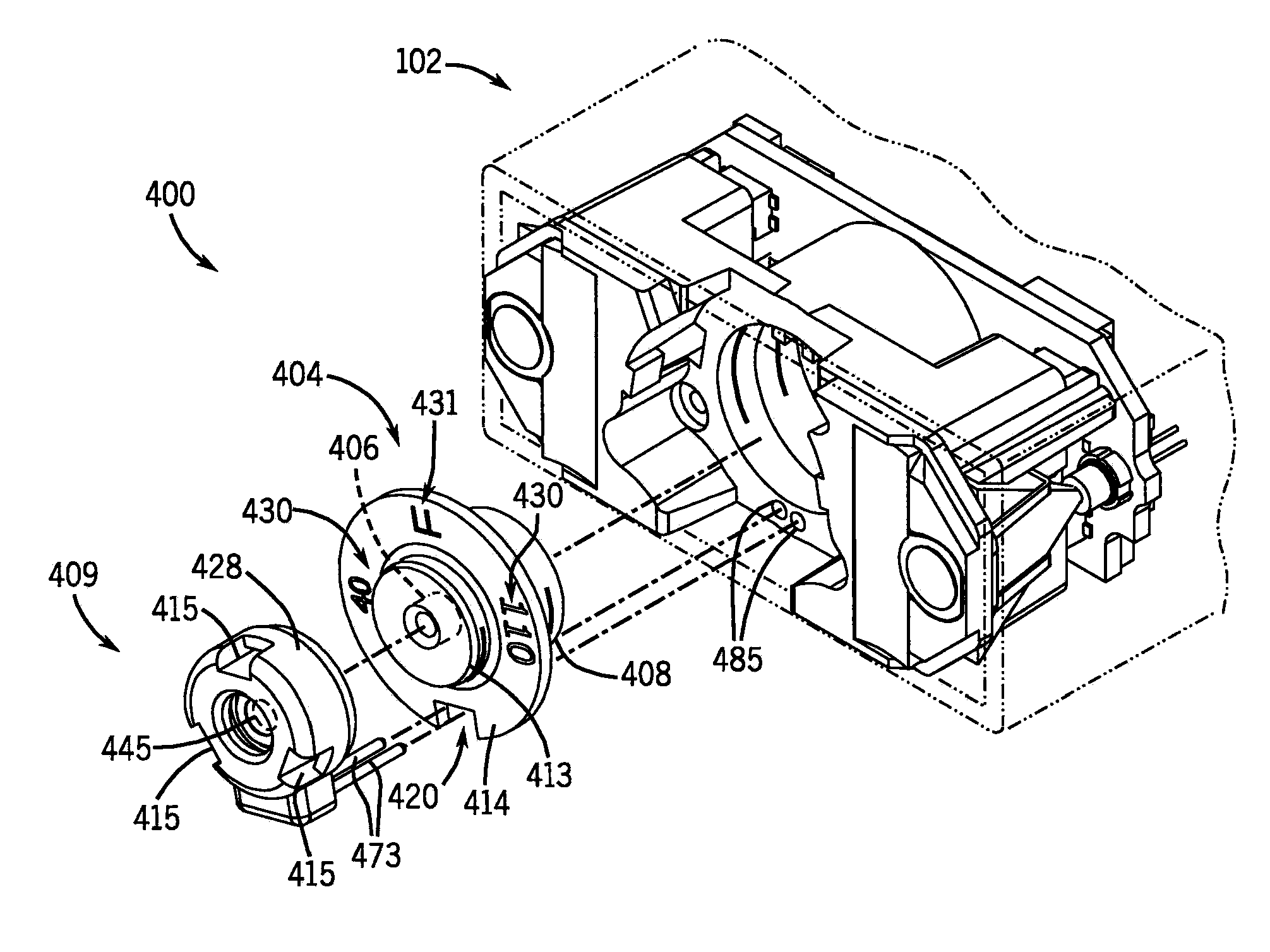

A modular focus system for image based code readers includes swappable lens attachments enables fixed focus, manual focus, and variable focus operation from a single reader. A manual focus lens cap includes a manually adjustable focus ring to change the focus of the reader. A variable focus lens module includes a liquid lens that is manipulated by a voltage delivered via a pair of electrodes to adjust the focus of the reader. The lens attachments can be swapped out and replaced as needed.
First Claim
Other Claims data not available
