Laminate panel, method for manufacturing a laminate panel and press element to realize the method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 23, 2021
Grant Date -
Feb 26, 2015
app pub date -
Mar 26, 2013
filing date -
Apr 3, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

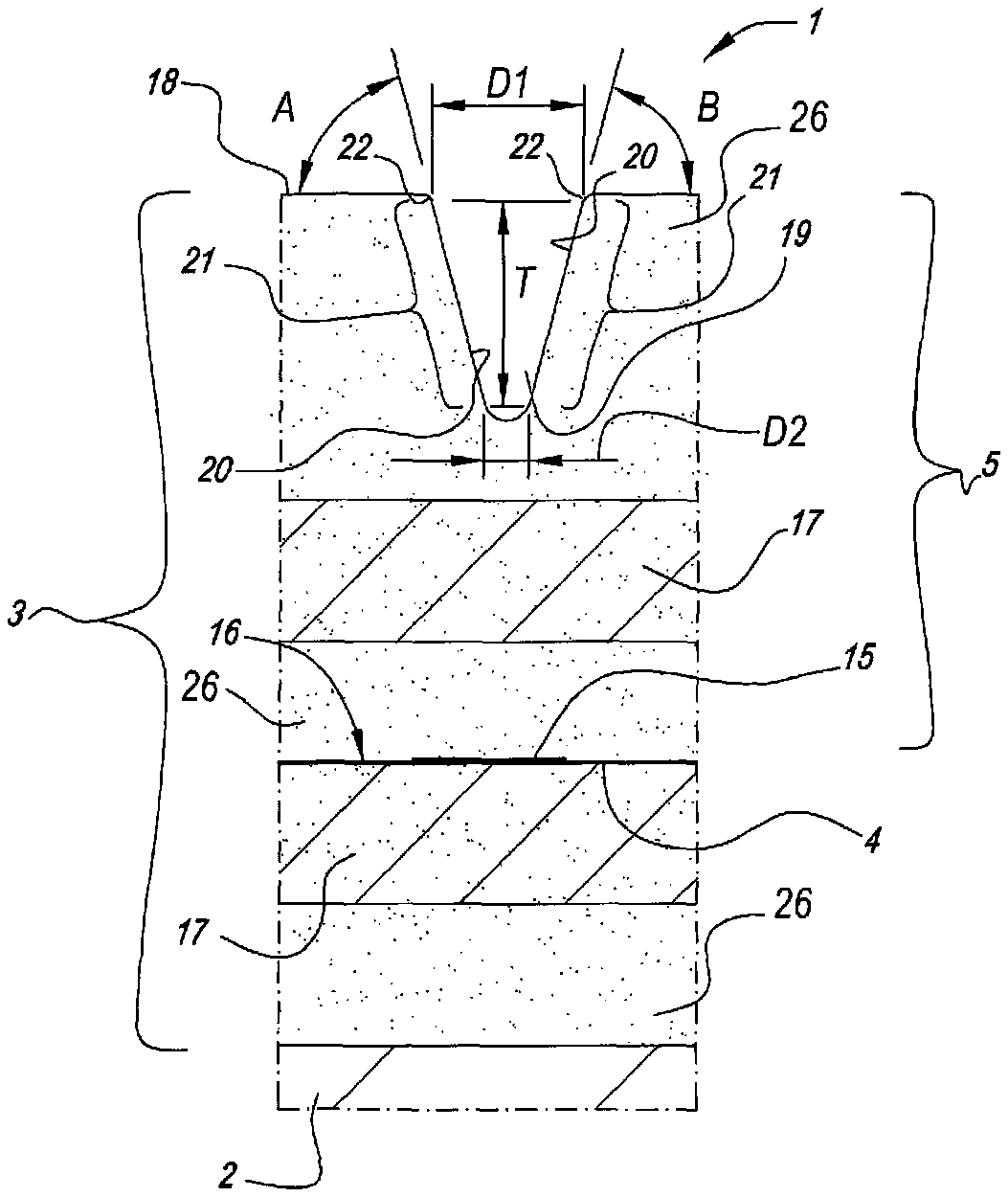

Laminate panel, which consists at least of a substrate, a decor and a transparent synthetic material layer, wherein the synthetic material layer is provided with a relief with elongate recesses, wherein the recesses have a cross-section with inclined flank portions, the inclination of which is more than 60° and less than 90°, and that the maximum depth over which said flank portions extend is larger than the maximum distance between the respective flank portions, measured in transverse direction and parallel to the plane of said panel.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2013 Application Filing Year
- B31F Class
- 98 Applications Filed
- 87 Patents Issued To-Date
- 88.78 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B31F Class
- 66.20 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 23, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 23, 2032 |
