INFORMATION ACQUISITION DEVICE FOR OBJECT TO BE MEASURED
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 26, 2015
app pub date -
Mar 7, 2013
filing date -
Mar 29, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

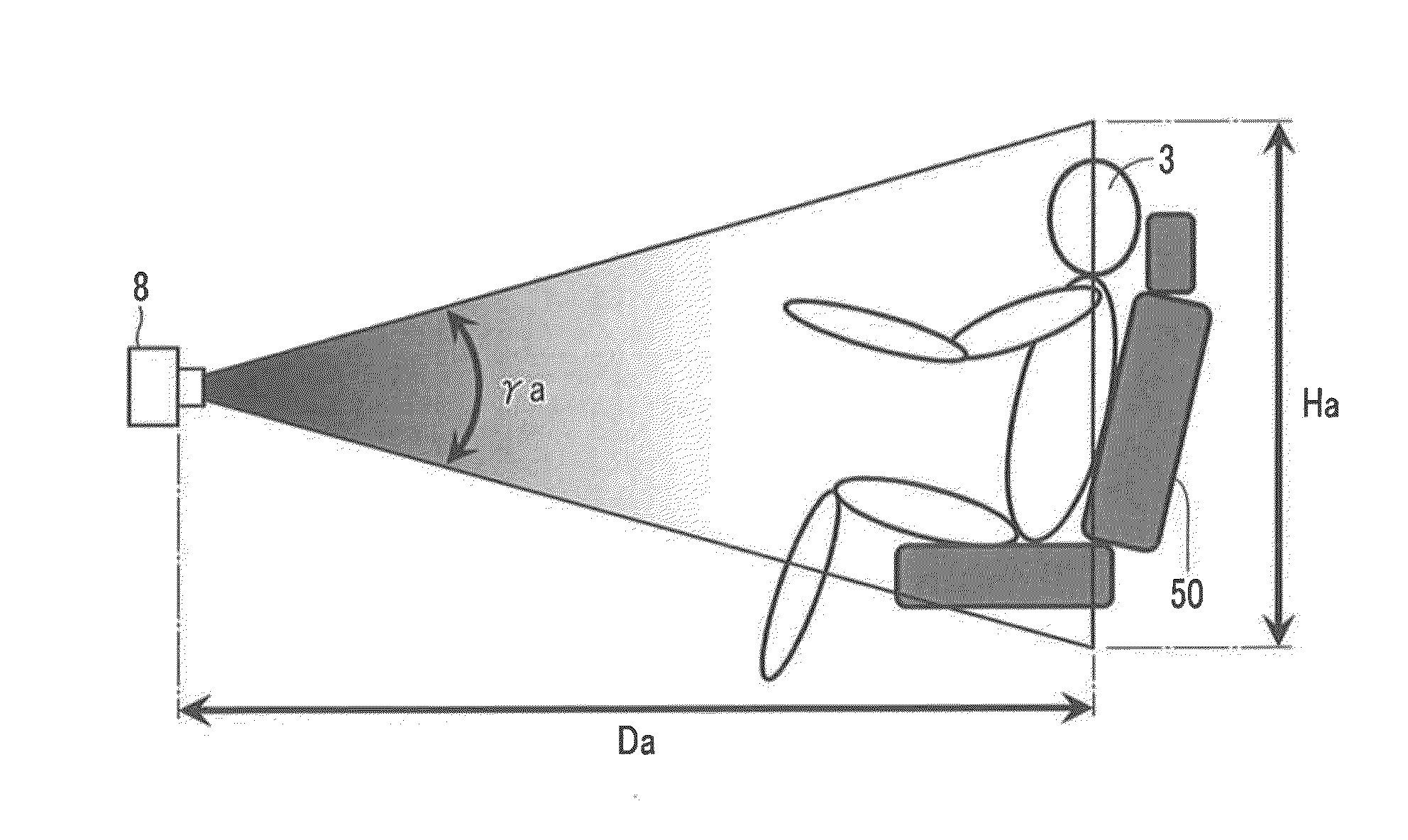

Provided is an information acquisition device for an object to be measured that smoothly acquires various types of information on an object to be measured even in the dark. The information acquisition device for an object to be measured includes: an imaging device which generates a pickup image regarding an image pickup range; a distance calculation unit which calculates a distance to the object to be measured based on the reflected light of modulated light emitted toward the image pickup range; a temperature detection device which detects a temperature of each image pickup section of the image pickup range corresponding to each image section of the pickup image; and an information acquisition unit which acquires information on the object to be measured based on the distance to the object to be measured and the temperature of each image pickup section detected by the temperature detection device.
First Claim
Other Claims data not available
