CATADIOPTRIC PROJECTION OBJECTIVE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 26, 2015
app pub date -
Oct 31, 2014
filing date -
Sep 24, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

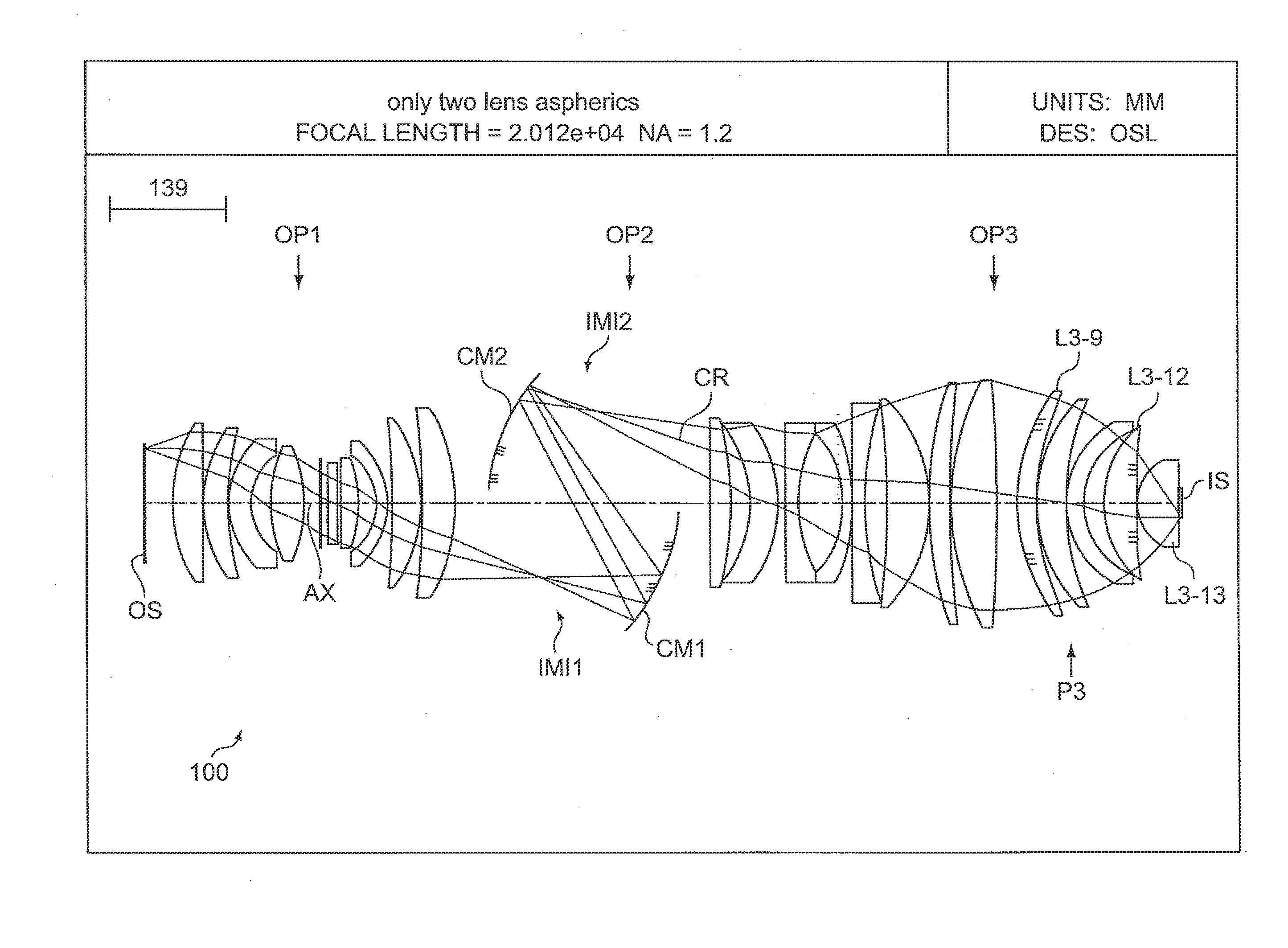

A catadioptric projection objective for imaging a pattern provided in an object plane of the projection objective onto an image plane of the projection objective has a first, refractive objective part for imaging the pattern provided in the object plane into a first intermediate image; a second objective part including at least one concave mirror for imaging the first Intermediate imaging into a second intermediate image; and a third, refractive objective part for imaging the second intermediate imaging onto the image plane; wherein the projection objective has a maximum lens diameter Dmax, a maximum image field height Y′, and an image side numerical aperture NA; wherein COMP1=Dmax/(Y′·NA2) and wherein the condition COMP1<10 holds.
First Claim
Other Claims data not available
