Balancer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Grant Date -
Feb 26, 2015
app pub date -
May 25, 2012
filing date -
May 27, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

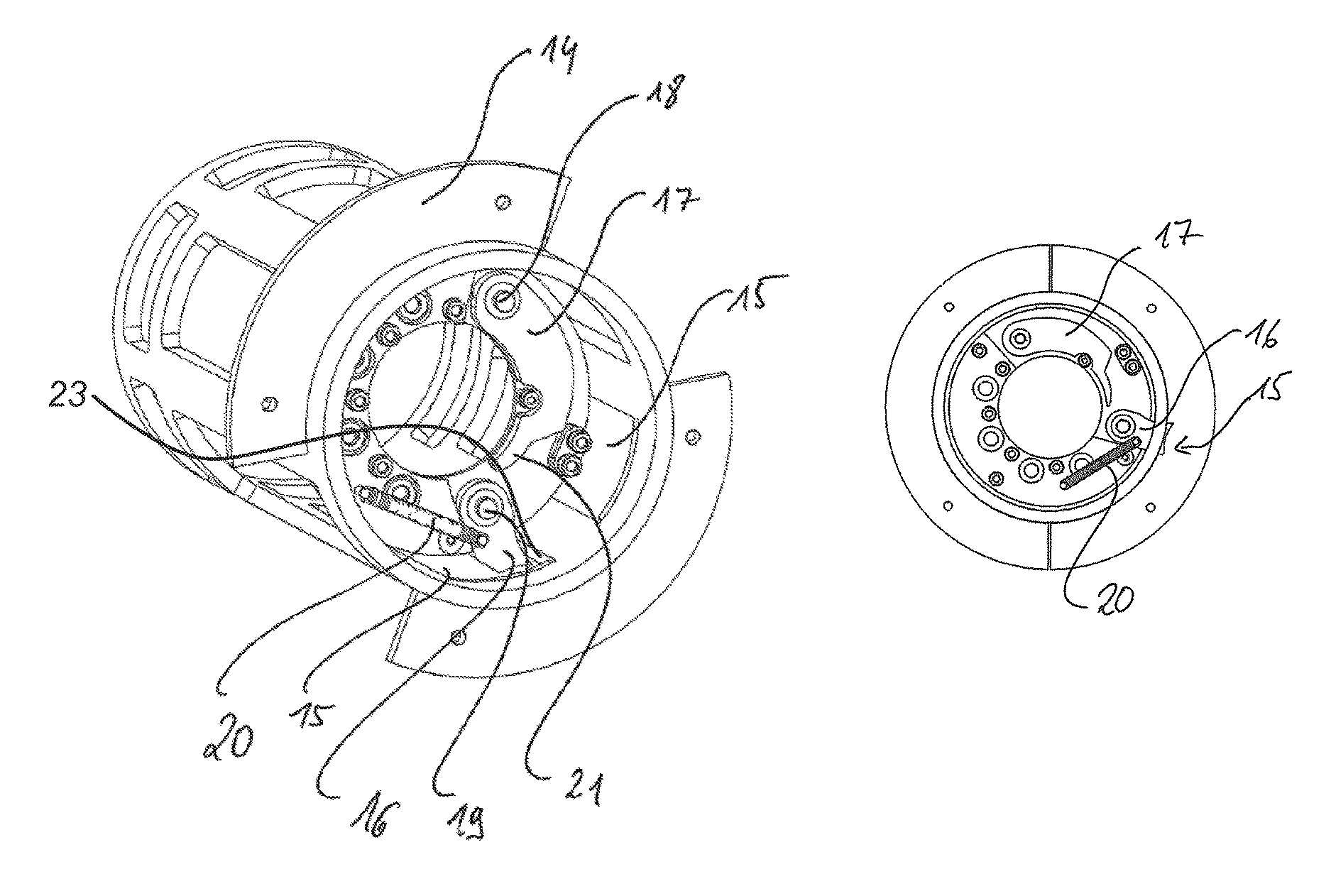

The invention relates to a balancer (1) for raising, holding and lowering a load, comprising a cable drum (7) which can be rotated in a manner actuated by pressure medium and has a cable for bearing the load, which cable can be unwound from and wound onto said cable drum (7), and has a device for emergency braking of the cable drum (7) if a defined rotational speed is exceeded, which device for emergency braking comprises at least one locking element (16) which is fastened to the cable drum (7), is held in a freewheeling position in a spring-loaded manner and can be moved into a deployed locking position in a manner which is actuated by centrifugal force, in which locking position the rotation of the cable drum (7) is blocked by virtue of the fact that the locking element (16) is in engagement with a stop which is stationary relative to the cable drum (7). The balancer (1) according to the invention is distinguished by the fact that, after its triggering, the locking element (16) is held in a deployed position when said locking element (16) and the stop which interacts with it move out of engagement.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B66D Class
- 95 Applications Filed
- 77 Patents Issued To-Date
- 81.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B66D Class
- 26.67 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
