APPARATUS AND METHOD FOR MEASURING THE VISCOSITY OF A FLUID USING ULTRASONIC WAVES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 26, 2015
app pub date -
Dec 19, 2013
filing date -
Aug 26, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

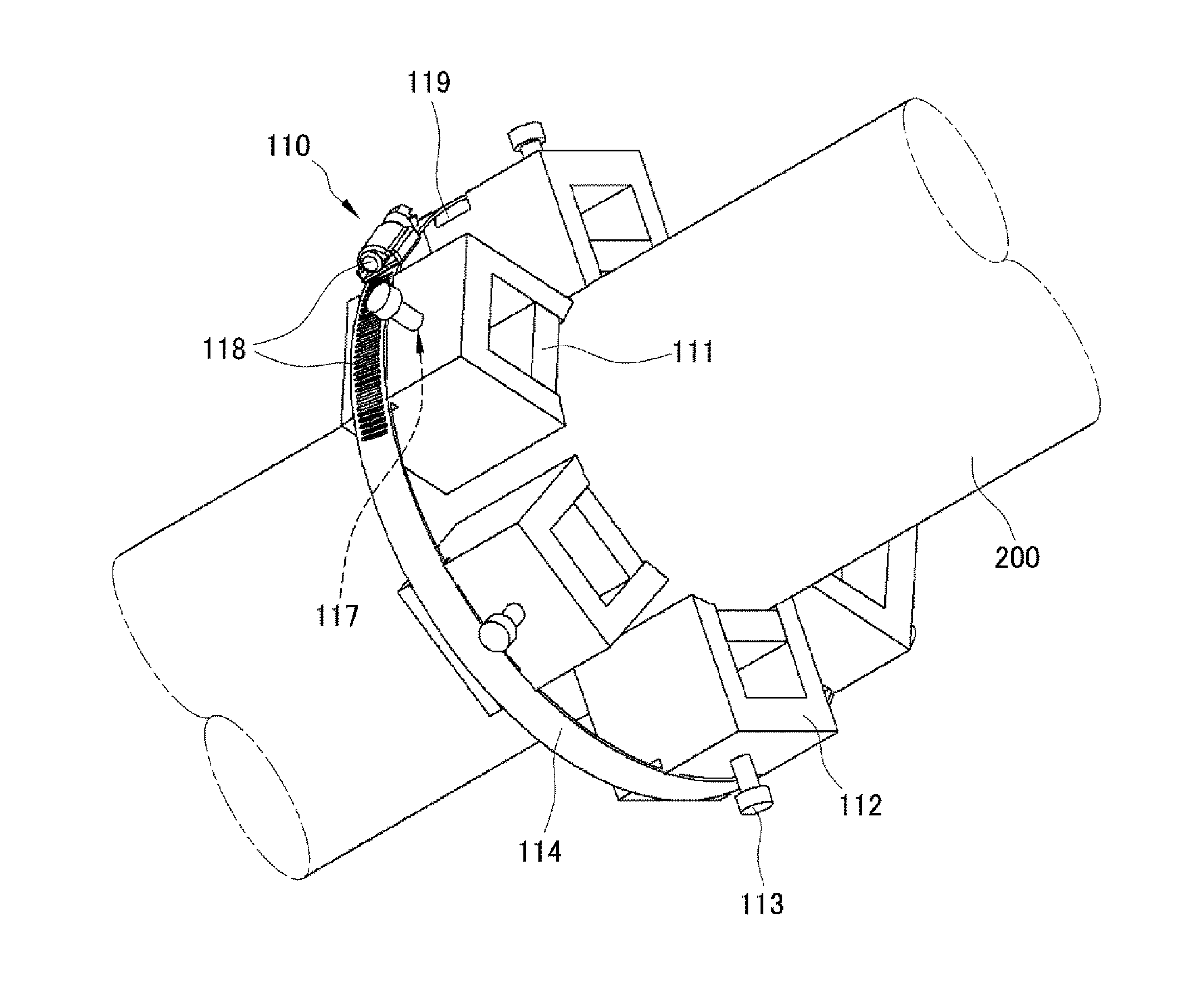

A method for measuring an ultrasonic viscosity includes applying a driving voltage to a plurality of first piezoelectric transducers provided along an outer wall circumference of a pipe at constant intervals to generate a torsional wave on a surface of the pipe, receiving the torsional wave propagated along the surface of the pipe through a plurality of second piezoelectric transducers provided along the outer wall circumference of the pipe at constant intervals while being spaced from the first piezoelectric transducers at a certain distance in a longitudinal direction of the pipe to convert the torsional wave into a voltage signal, calculating an attenuation and a propagation velocity of the torsional wave based on the time for the propagation of the torsional wave and the converted voltage signal, and measuring viscosity of the fluid in the pipe based on the calculated attenuation and propagation velocity of the torsional wave.
First Claim
Other Claims data not available
