ELECTRICAL CONNECTOR AND ELECTRICAL CONNECTOR SERIES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 19, 2015
app pub date -
Dec 17, 2013
filing date -
Aug 14, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

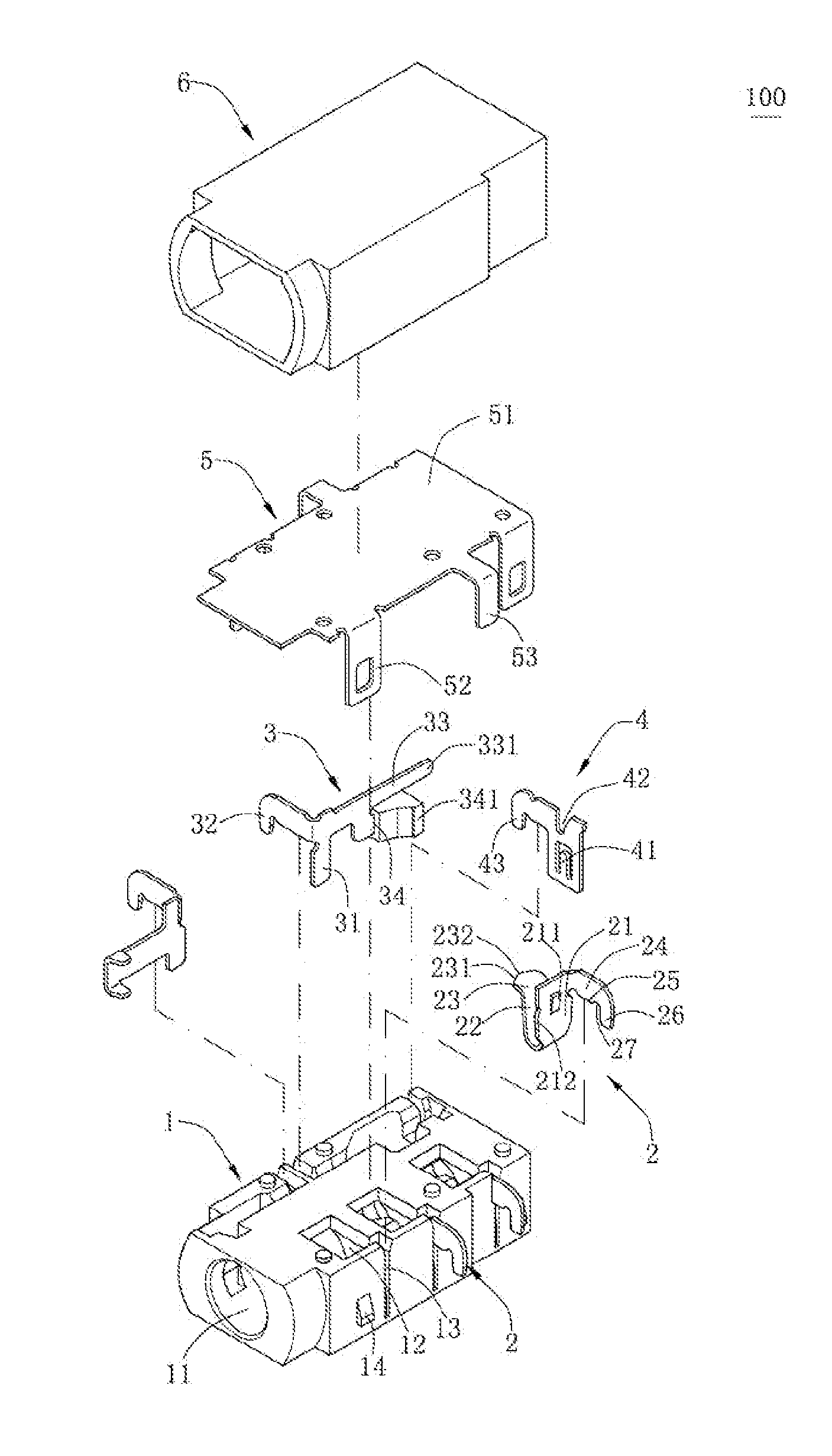

An electrical connector, belonging to one of electrical connector series of different height specifications, is used for being fixed to a circuit board. The electrical connector includes an insulating body, a plurality of terminals, a shielding case disposed on the insulating body and having at least one fixing pin, and an abutting portion. Each terminal has a base fixed in the insulating body, an elastic portion bent and extending from one end of the base, a contact portion protruding from the elastic portion, and a soldering portion bent and extending from a side edge of the other end of the base. The abutting portion is formed on the soldering portion or the fixing pin by blanking. The abutting portion presses against the circuit board, and a height difference between the insulating body and the circuit board is adjustable by adjusting the height of the abutting portion.
