Low NOx burner
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Grant Date -
Feb 19, 2015
app pub date -
Aug 13, 2013
filing date -
Aug 13, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

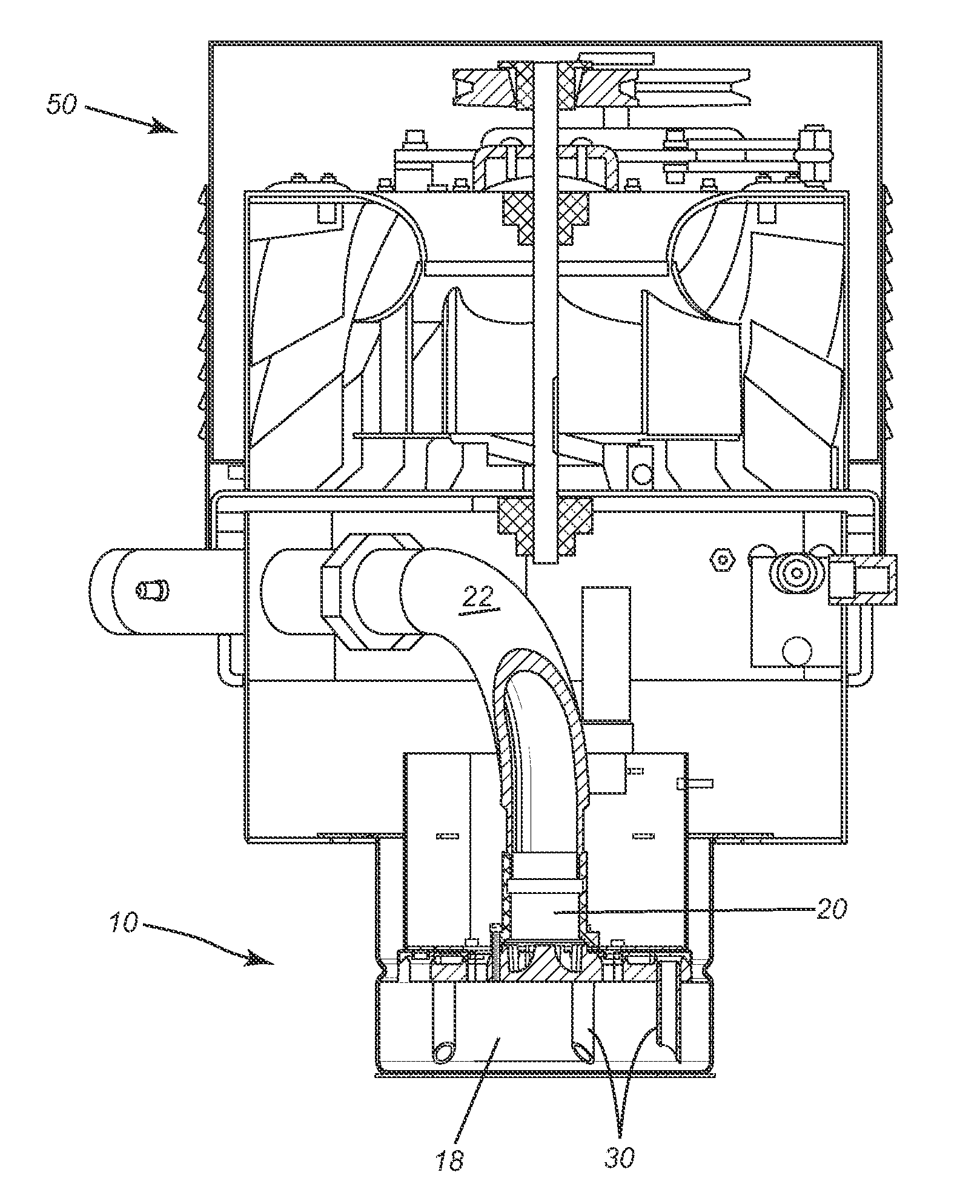

A low NOx burner has a housing that includes a burner head defining a gas manifold and a primary flame zone downstream of the burner head. The burner has a gas inlet for receiving gas. Flow-through air vents are disposed around a center of the burner head and extending through the burner head thereby enabling cold core air to flow from an annular core space upstream of the burner head to the primary flame zone downstream of the burner head. The burner also includes a plurality of premix air vents in fluid communication with the manifold for premixing air and gas within the manifold and for emitting premixed air and gas into the primary flame zone. A plurality of staging pipes extend from the manifold into the primary flame zone for conveying gas into the primary flame zone. The burner includes an ignition device extending into the primary flame zone.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F23M Class
- 39 Applications Filed
- 36 Patents Issued To-Date
- 92.31 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F23M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
