LOCKING RING WITH TAPERED RECESSES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 19, 2015
app pub date -
Aug 14, 2014
filing date -
Aug 15, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

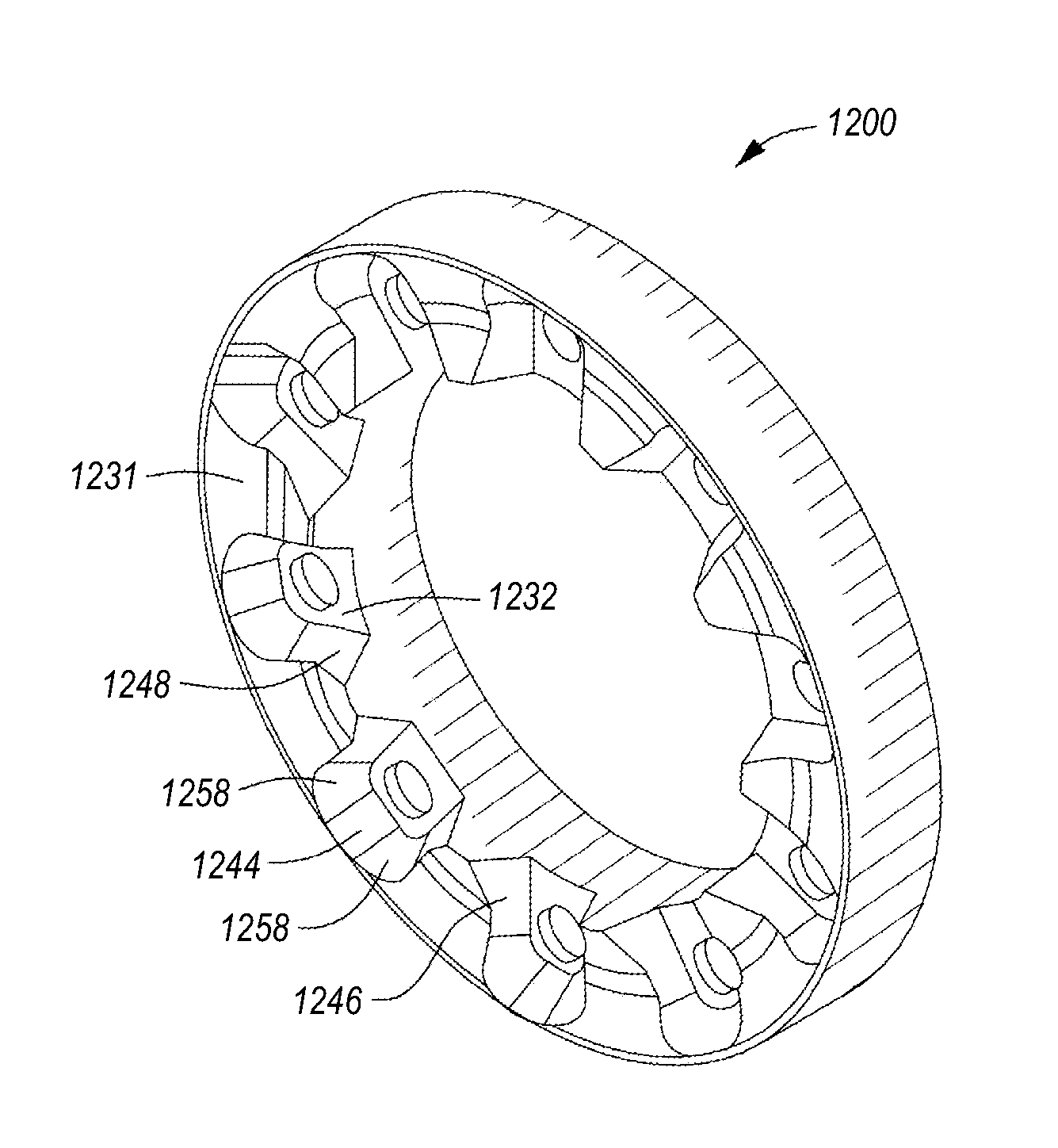

A locking ring positioned between first and second components. The locking ring includes a body having first and second opposing axial surfaces and a bore formed axially therethrough. A recess is formed into the second axial surface. The recess is defined by an outer radial surface, first and second opposing circumferentially offset surfaces, and an inner axial surface disposed between the first and second axial surfaces. At least a portion of the first circumferentially offset surface is oriented at an angle between 30° and 85° with respect to a plane that is perpendicular to a longitudinal centerline through the body.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E21B Class
- 0 % this patent is cited more than
- 10 Age
