Toggle latch for sequentially extended mechanical mast
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2017
Grant Date -
Feb 19, 2015
app pub date -
Nov 2, 2012
filing date -
Nov 4, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

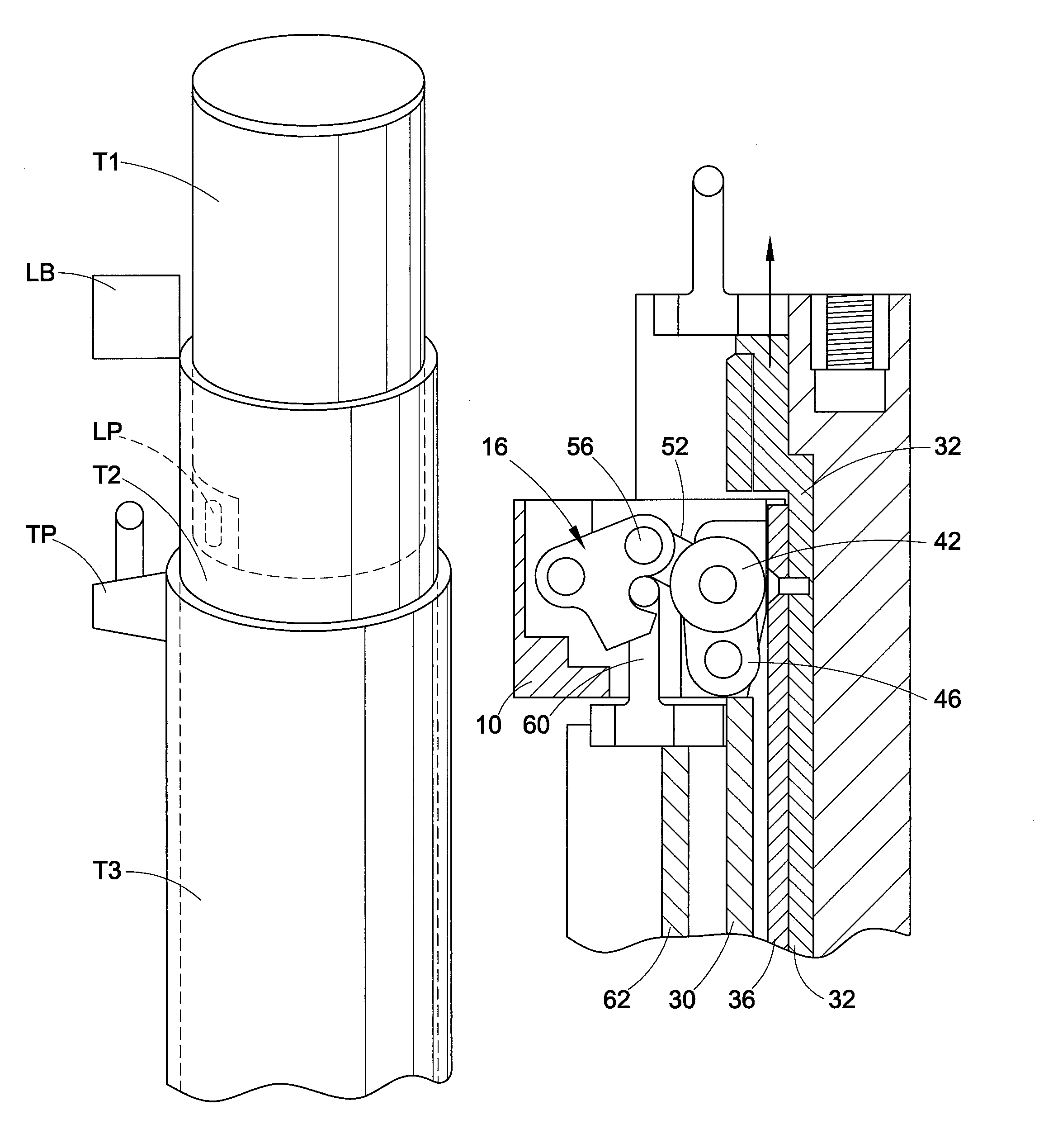

A telescoping mast having a latch assembly includes a latch body mountable to a first tube section, a latch mechanism supported by the latch body, a toggle mechanism operatively connected to the latch mechanism, and a latch plate mountable to a second tube section. The latch mechanism includes a pawl member pivotably between an engaged position for interlocking with a corresponding recess in the latch plate to thereby restrict axial movement between the first and second tube sections, and a disengaged position allowing relative axial movement between the first and second tube sections. The toggle mechanism is movable between an over-center locked configuration corresponding to the engaged position of the latch mechanism and an unlocked configuration corresponding to the disengaged position of the latch member.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F21V Class
- 2996 Applications Filed
- 2304 Patents Issued To-Date
- 76.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F21V Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 21, 2028 |
