MILLIMETER WAVE THREE DIMENSIONAL HOLOGRAPHIC SCAN IMAGING APPARATUS AND INSPECTING METHOD THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 19, 2015
app pub date -
Aug 4, 2014
filing date -
Aug 15, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

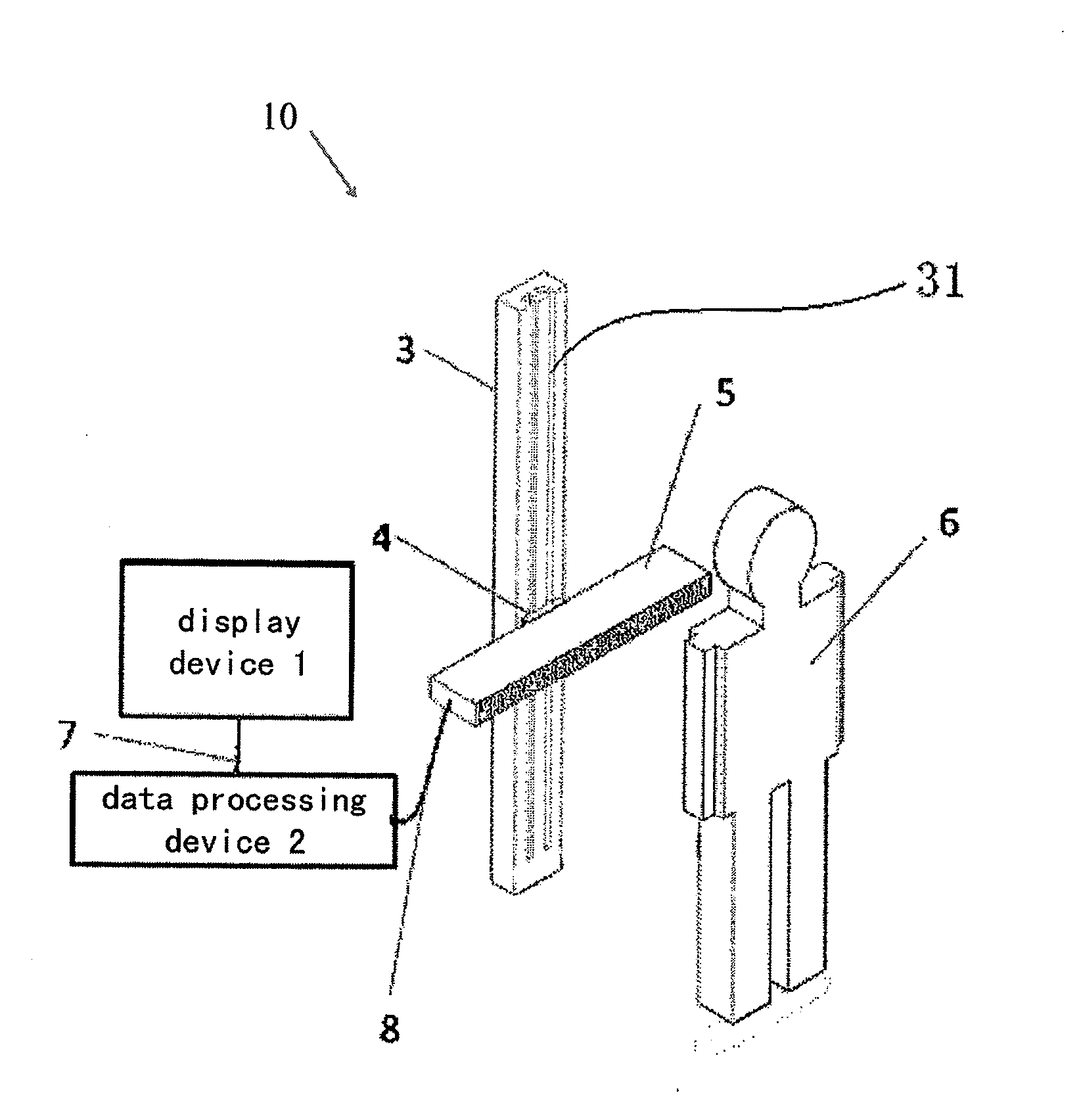

A millimeter wave three dimensional holographic scan imaging apparatus and a method for inspecting an object to be inspected using the same are disclosed. The apparatus includes a millimeter wave transceiver module with a millimeter wave transceiver antenna array for transmitting and receiving a millimeter wave signal. The apparatus also includes a guide rail device, to which the millimeter wave transceiver module is connected in slidable form. The millimeter wave transceiver module is moveable along the guide rail device to perform a plane scan on an object to be inspected. A data processing device generates a millimeter wave holographic image from the plane scan.
First Claim
Other Claims data not available
