DURABLE DRAWER RETAINER APPARATUS AND METHOD OF USE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 3, 2014
filing date -
Sep 24, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

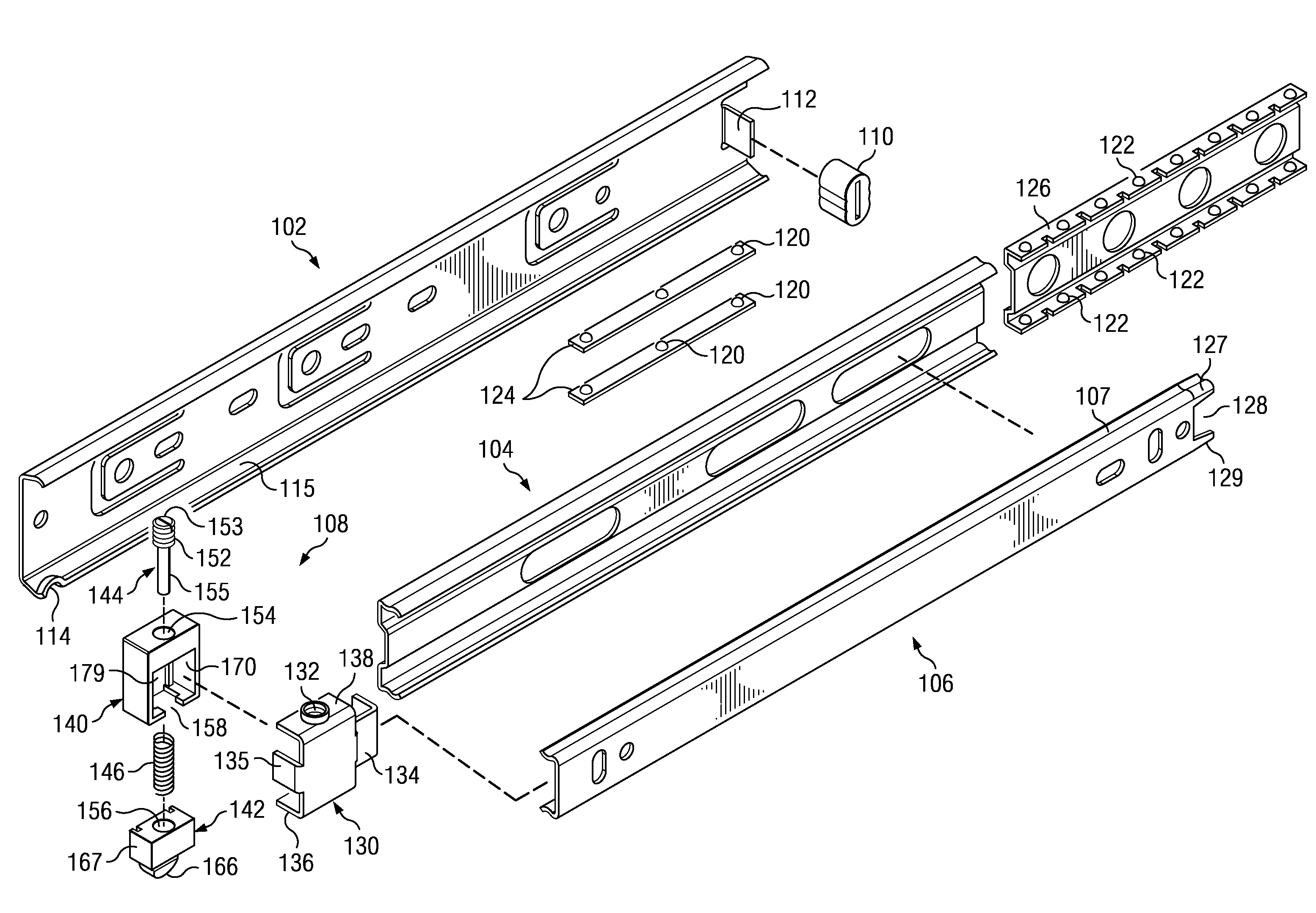

A foil extension ball bearing drawer slide assembly comprised of a fixed member attached to a cabinet piece, a middle member slidingly engaged with the fixed member with a set of linear bearings, a drawer member attached to a drawer piece slidingly engaged with the middle member via a second set of linear bearings, and a drawer retainer mechanism attached to the drawer member and in adjustable contact with the drawer member. The drawer retainer mechanism is comprised of a housing attached to the drawer member, a piston slidingly fitted in the frame and biased by a biasing member. The piston, biased by the biasing member, is forced towards the housing by a raised indention in a race of the fixed member.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US8876230 | Sep 24, 2011 |
International Classification(s)
- 2014 Application Filing Year
- A47B Class
- 976 Applications Filed
- 868 Patents Issued To-Date
- 88.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- A47B Class
- 12.37 % this patent is cited more than
- 10 Age
