DISHWASHER AND METHOD OF OPERATING DISHWASHER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 19, 2015
app pub date -
Mar 30, 2012
filing date -
Mar 30, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

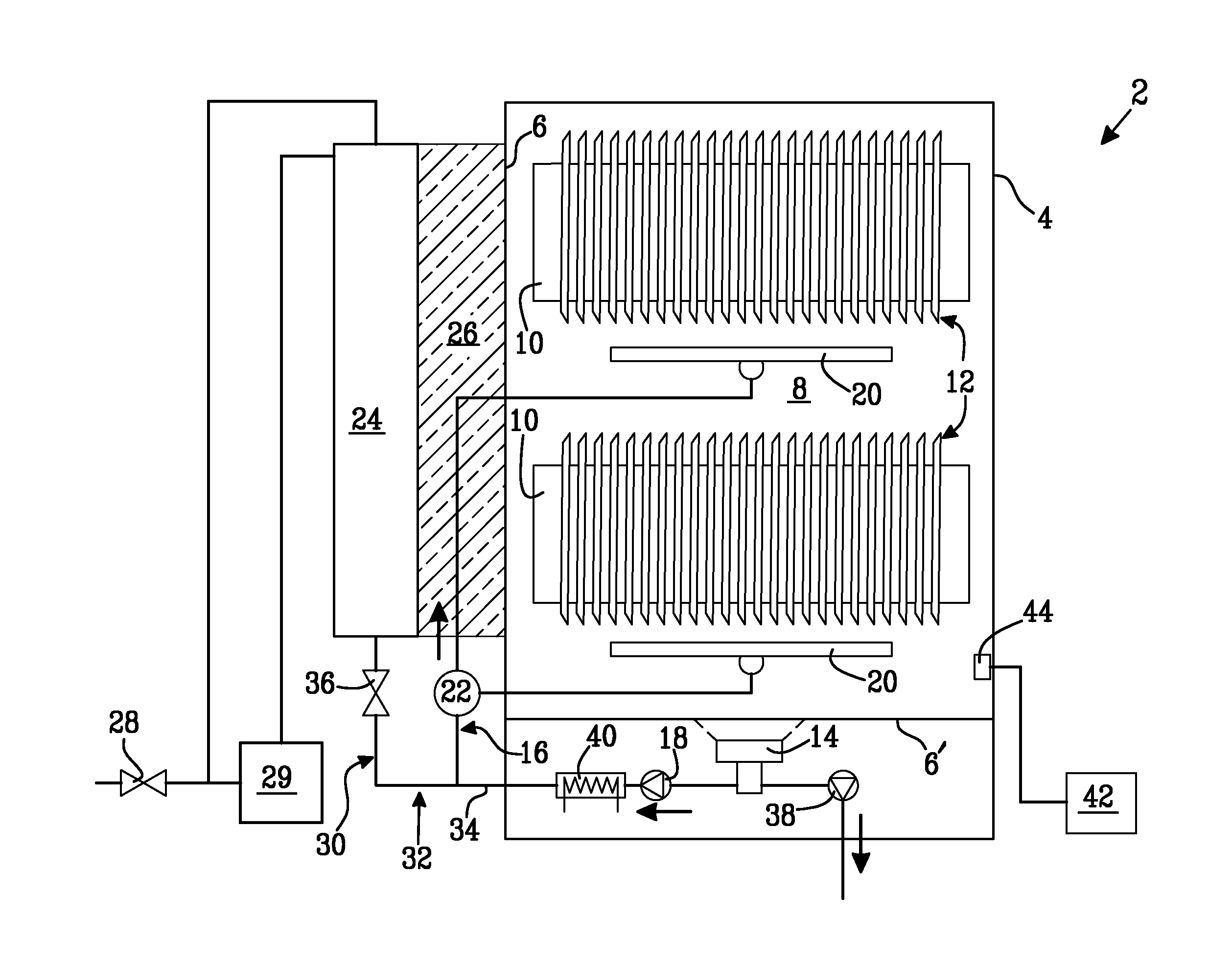

A dishwasher (2) is provided comprising a washing chamber (8) with a sump (14) and a circulation circuit (16). The circulation circuit (16) comprises the sump (14), a circulation pump (18) and a spraying device (20) for spraying washing liquid into the washing chamber (8). The dishwasher (2) further comprises a reservoir (24) adapted to be connected to water mains, wherein a liquid connection (30) is adapted to transfer liquid from the reservoir (24) to the washing chamber (8). A return system (32) is adapted to transfer liquid from the washing chamber (8) to the reservoir (24). The reservoir (24) is thermally insulated from the washing chamber (8).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- A47L Class
- 11.96 % this patent is cited more than
- 10 Age
