METHOD OF PRODUCING ELECTRICALLY CONDUCTIVE FOAM RUBBER ROLLER, ELECTRICALLY CONDUCTIVE FOAM RUBBER ROLLER, AND IMAGE FORMING APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 12, 2015
app pub date -
Jul 22, 2014
filing date -
Aug 7, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

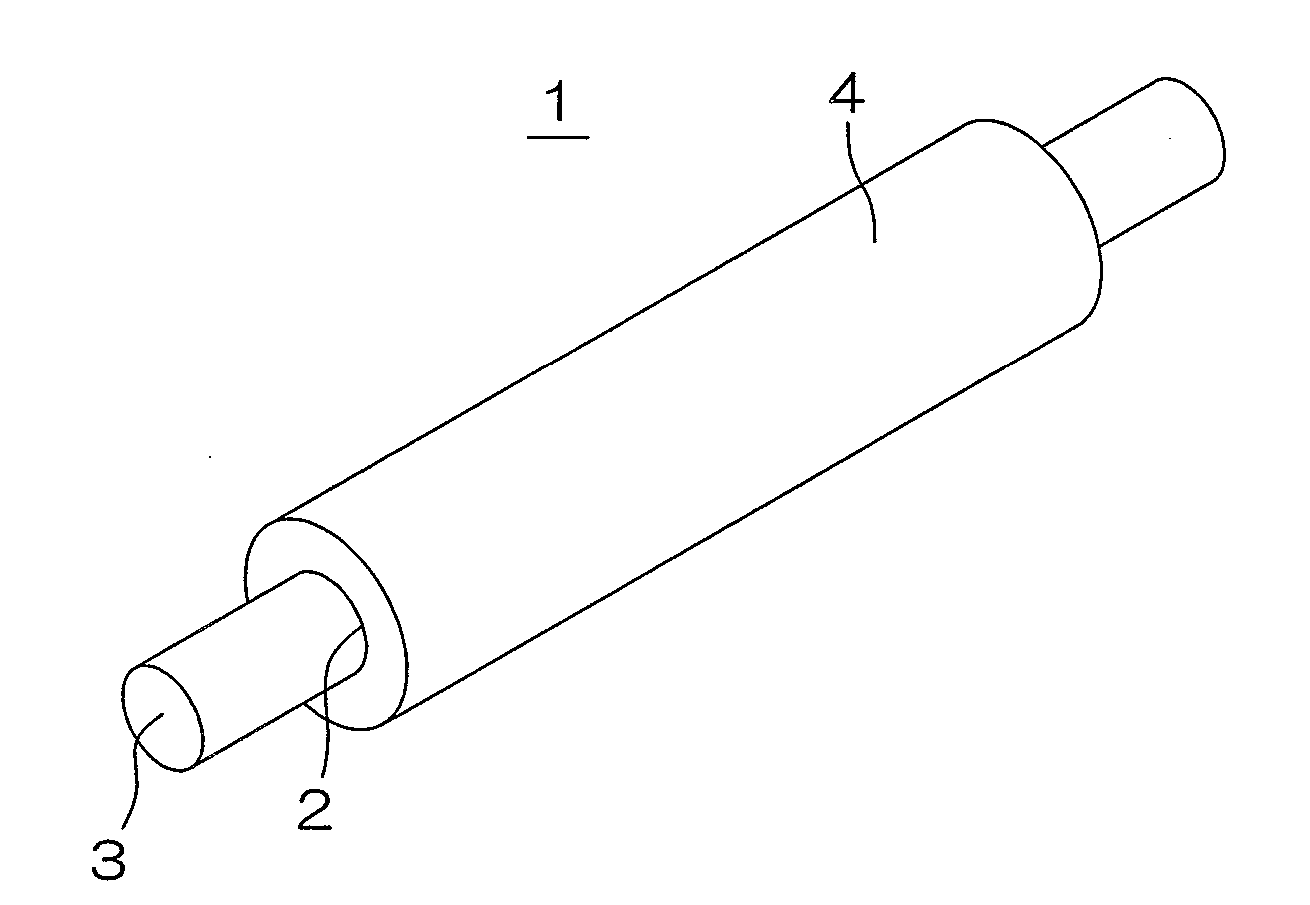

The present invention provides a production method for producing an electrically conductive foam rubber roller which has a tubular body free from internal abnormal foaming and hence free from internal cracking after the foaming. The production method includes the steps of: continuously extruding a rubber composition into a tubular body (7); and passing the extruded tubular body (7) through a microwave crosslinking device (8) and then through a hot air crosslinking device (9) in an elongated state without cutting the tubular body. The rubber composition is extruded, foamed and crosslinked so that the tubular body has a thickness unevenness of not greater than 1.3 immediately after being passed through the hot air crosslinking device (9), the thickness unevenness being defined as a ratio Tmax/Tmin between a maximum radial thickness Tmax and a minimum radial thickness Tmin of the tubular body which are each measured in a cross section of the tubular body.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | A | JP2015033767 | Aug 07, 2013 |
| CN | A | CN104339611 | Jul 25, 2014 |
