VEHICULAR HANDLE DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 12, 2015
app pub date -
Mar 26, 2013
filing date -
Apr 10, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

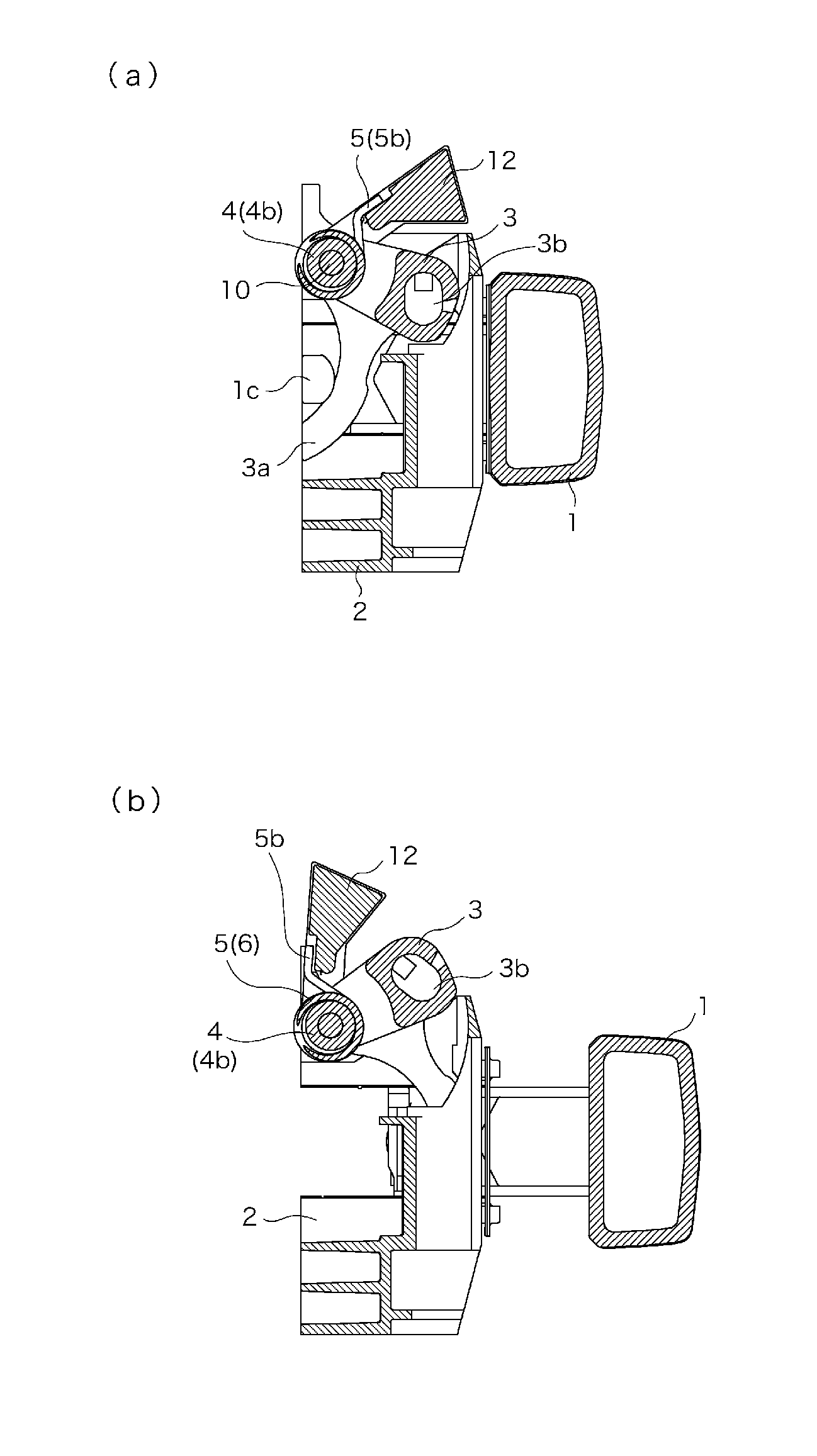

An object of the present invention is to provide a vehicular handle device capable of preventing interference between an inner periphery of a torsion spring and a pivot shaft under operating conditions, thereby preventing abnormal noise from occurring during operation. Provided is a vehicular handle device, including: a handle base 2 fixed to a vehicle and holding an operating handle 1; a turning component 3 attached to the handle base 2 and being turnable between its initial position and actuated position; a torsion spring 5 wound around a spring-wound shaft 4 and configured to bias the turning component 3 to the initial turning position; and a coil restraining portion 7 configured to abut on an outer periphery of a coil portion 6 of the torsion spring 5 thereby to restrain the coil portion 6 from moving in a radial direction.
First Claim
Other Claims data not available
