HINGE LID CONTAINER WITH AUDIBLE INDICATION OF CLOSING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 5, 2015
app pub date -
Sep 22, 2011
filing date -
Sep 23, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

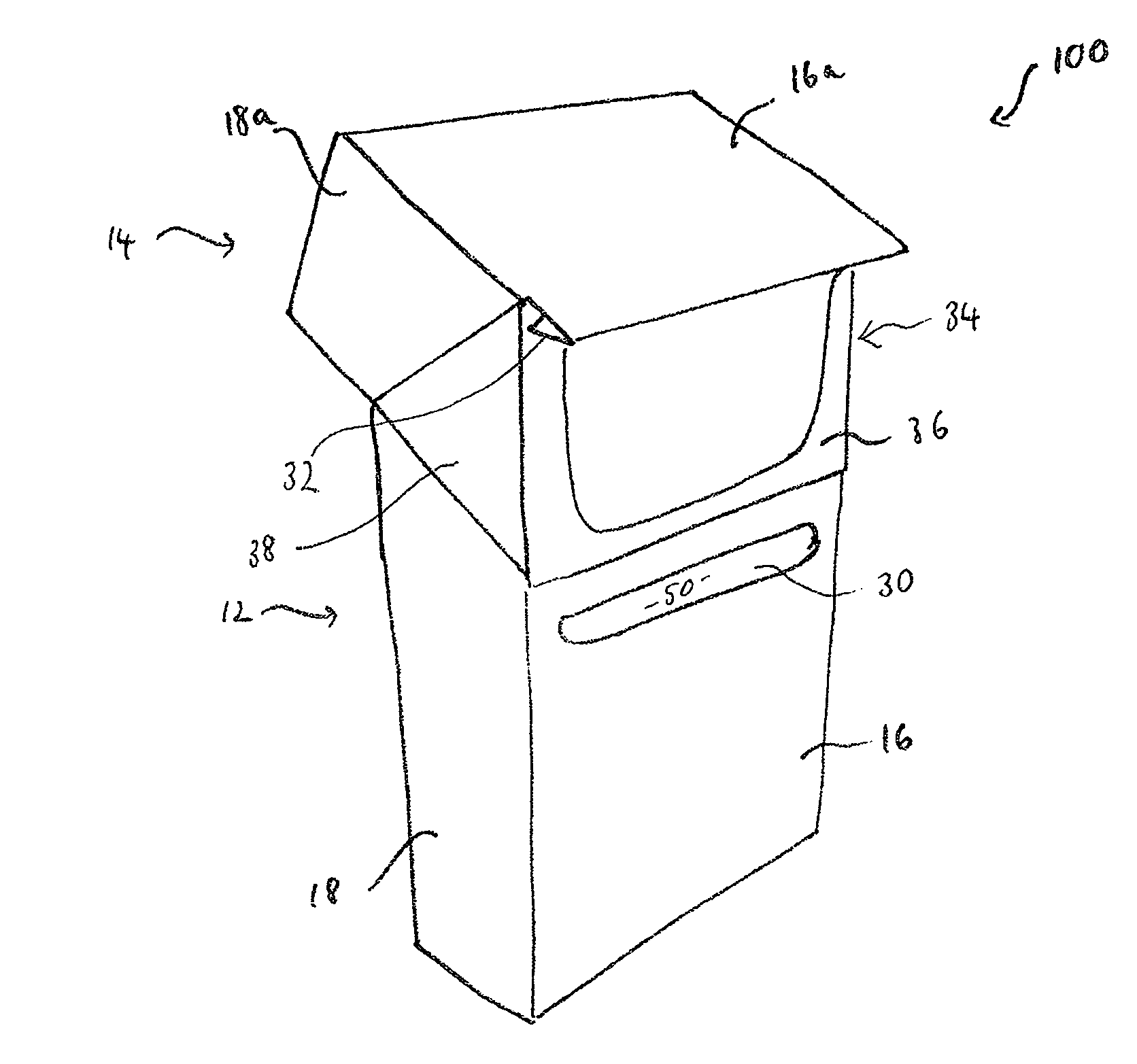

A hinge lid container (10) for consumer goods comprises: a box (12) comprising a box front wall (16) having a cut out portion (30) therein; an inner frame (34) mounted within the box (12) and comprising a frame front wall (36), wherein a portion of the frame front wall is exposed through the cut out portion (30) in the box front wall (16); a spacer element (40) arranged between the box (12) and the inner frame (34) and providing separation between the box front wall (16) and the frame front wall (36); and a hinge lid (14) connected to the box. The hinge lid (14) is pivotable between a closed position and an open position and comprises a lid flap (32) hingedly connected to the lid front wall (16a) and folded inwardly towards the inner surface of the lid front wall.
First Claim
Other Claims data not available
