DEPOSITION OF THICK MAGNETIZABLE FILMS FOR MAGNETIC DEVICES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 5, 2015
app pub date -
Jul 7, 2014
filing date -
Jul 8, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

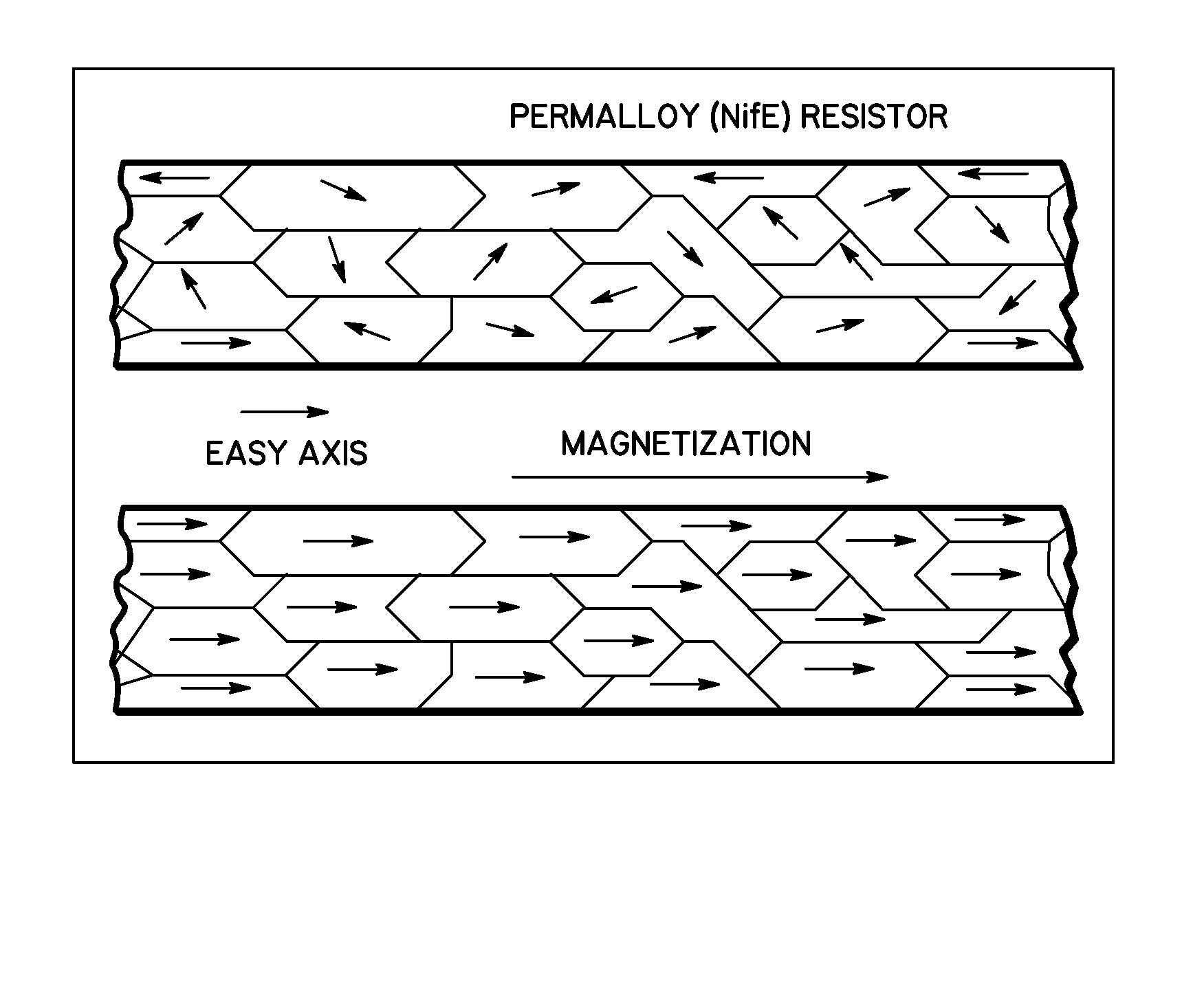

A PVD chamber for growing a magnetic film of NiFe alloy at a growth rate of greater than 200 nm/minute produces a film exhibiting magnetic skew of less than plus or minus 2 degrees, magnetic dispersion of less than plus or minus 2 degrees, DR/R of greater than 2 percent and film stress of less than 50 MPa. NiFe alloy is sputtered at a distance of 2 to 4 inches, DC power of 50 Watts to 9 kiloWats and pressure of 3 to 8 milliTorr. The chamber uses a unique field shaping magnetron having magnets arranged in outer and inner rings extending about a periphery of the magnetron except in two radially opposed regions in which the inner and outer rings diverge substantially toward a central axis of the magnetron.
First Claim
Other Claims data not available
